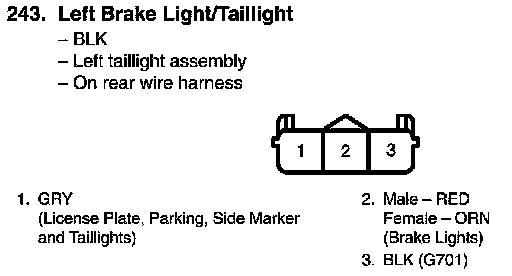

View 243 Left Brake Light/Taillight Connector View
View 243 Left Brake Light/Taillight Connector View
