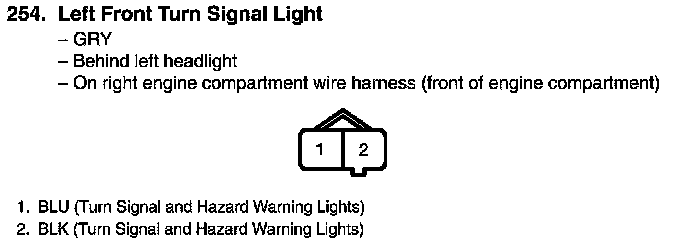

View 254 Left Front Turn Signal Light Connector View
View 254 Left Front Turn Signal Light Connector View
