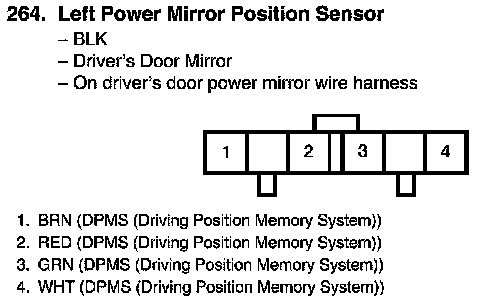

View 264 Left Power Mirror Position Sensor Connector View
View 264 Left Power Mirror Position Sensor Connector View
