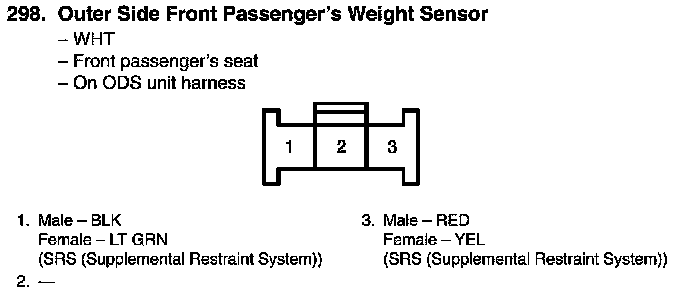

View 298 Outer Side Front Passenger's Weight Sensor Connector View
View 298 Outer Side Front Passenger's Weight Sensor Connector View
