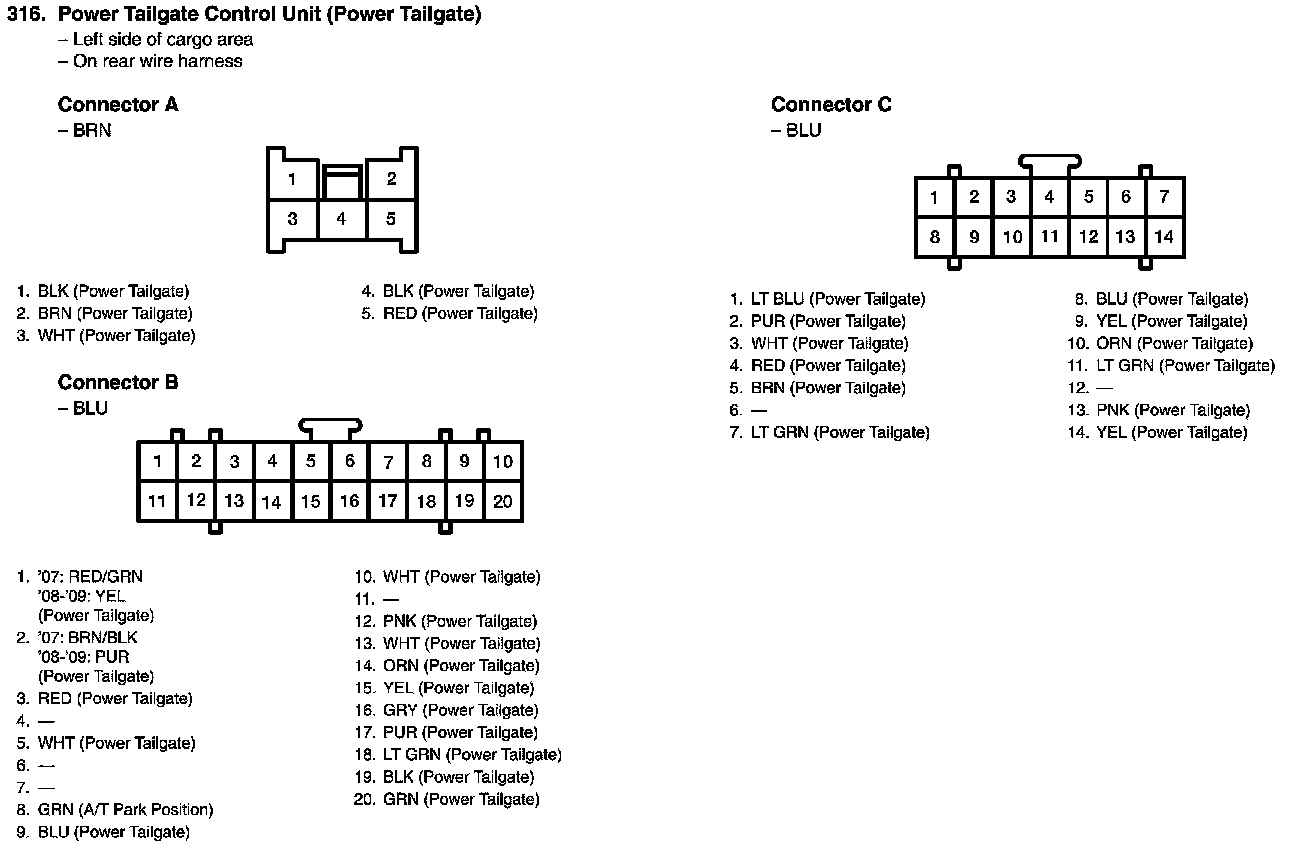

View 316 Power Tailgate Control Unit Connector View
View 316 Power Tailgate Control Unit Connector View
