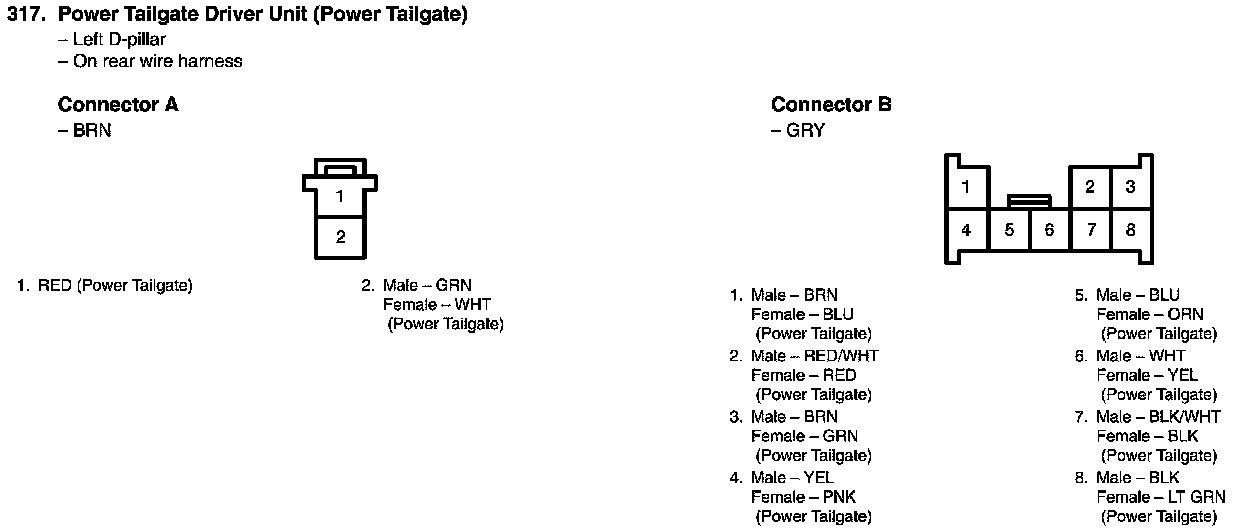

View 317 Power Tailgate Driver Unit Connector View
View 317 Power Tailgate Driver Unit Connector View
