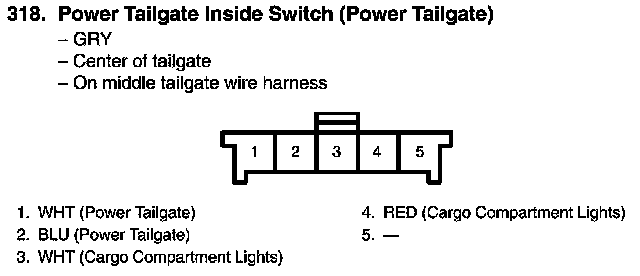

View 318 Power Tailgate Inside Switch Connector View
View 318 Power Tailgate Inside Switch Connector View
