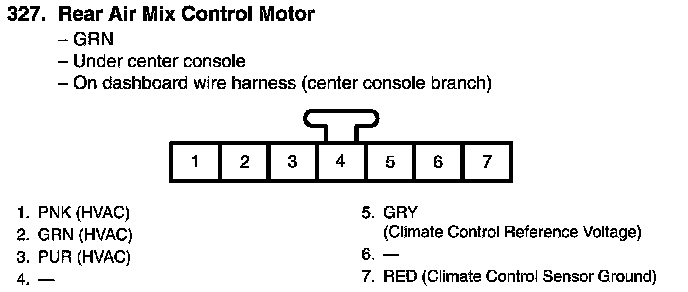

View 327 Rear Air Mix Control Motor Connector View
View 327 Rear Air Mix Control Motor Connector View
