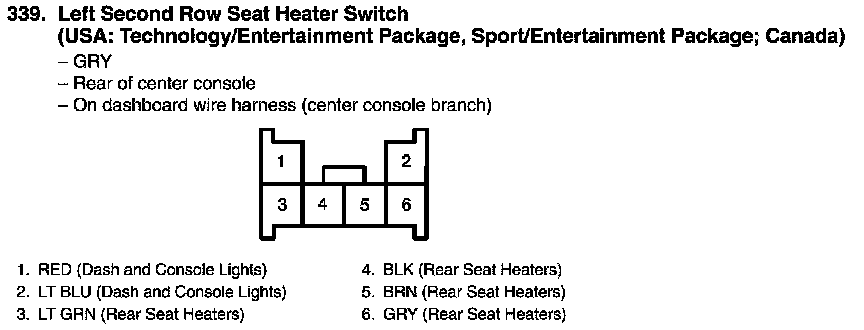

View 339 Left Second Row Seat Heater Switch Connector View
View 339 Left Second Row Seat Heater Switch Connector View
