Operation CHARM
: Car repair manuals for everyone.
Home
>>
Acura
>>
2009
>>
MDX V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

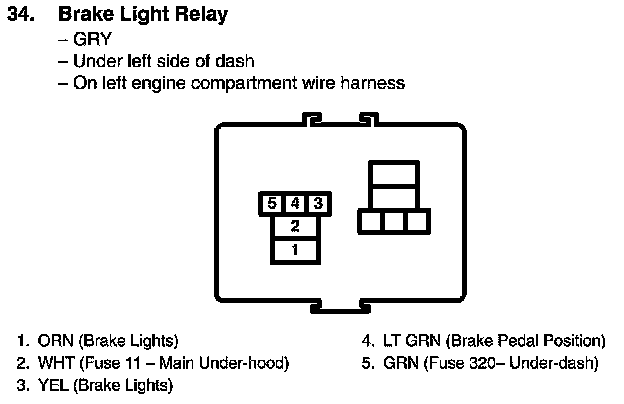

View 34 Brake Light Relay Connector View
View 34 Brake Light Relay Connector View
