Home >> Acura >> 2009 >> MDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 349 Right Back-up Light Connector View

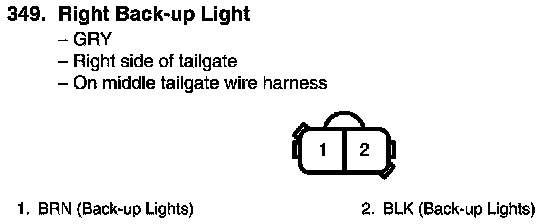

View 349 Right Back-up Light Connector View
