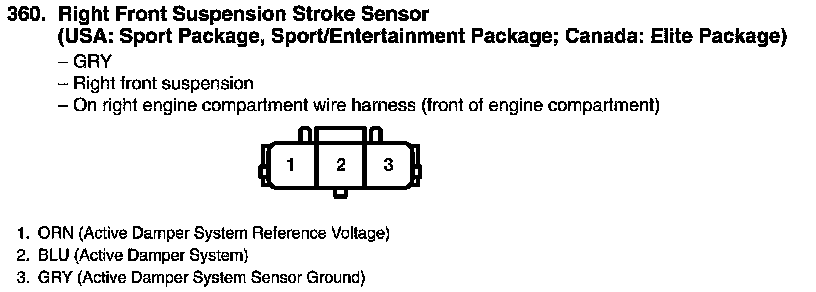

View 360 Right Front Suspension Stroke Sensor Connector View
View 360 Right Front Suspension Stroke Sensor Connector View
