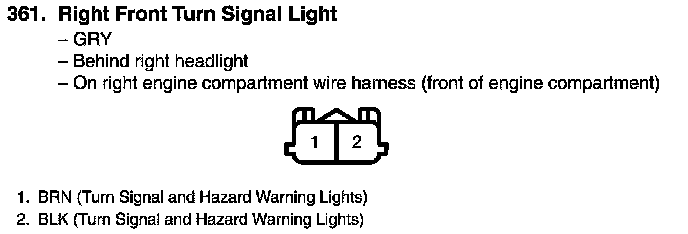

View 361 Right Front Turn Signal Light Connector View
View 361 Right Front Turn Signal Light Connector View
