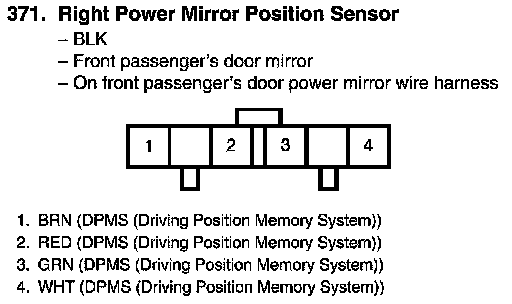

View 371 Right Power Mirror Position Sensor Connector View
View 371 Right Power Mirror Position Sensor Connector View
