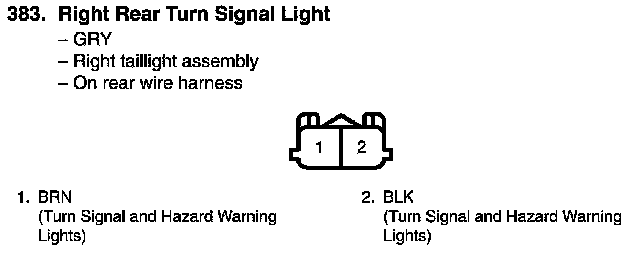

View 383 Right Rear Turn Signal Light Connector View
View 383 Right Rear Turn Signal Light Connector View
