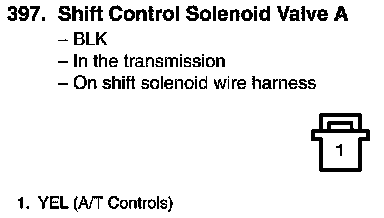

View 397 Shift Control Solenoid Valve A Connector View
View 397 Shift Control Solenoid Valve A Connector View
