Navigation Module
>>

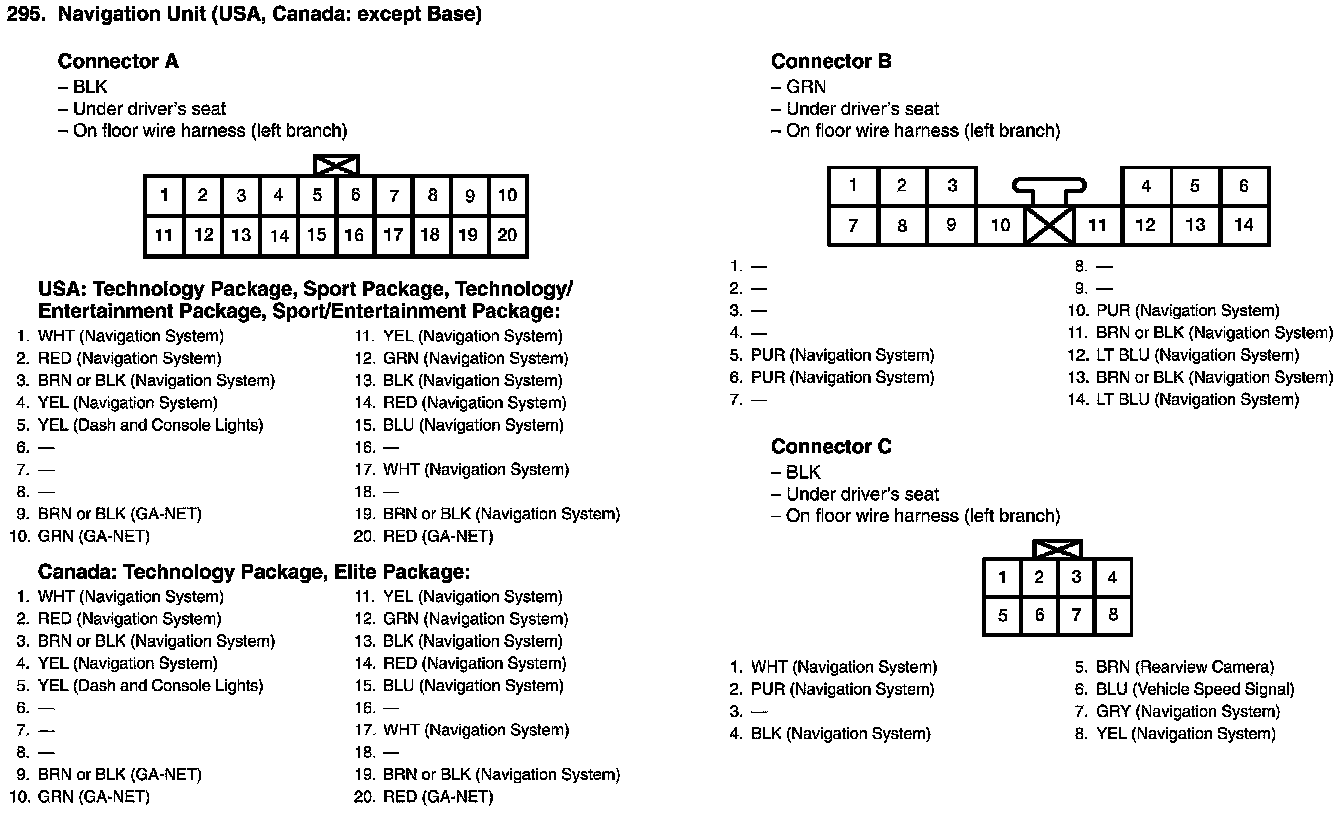

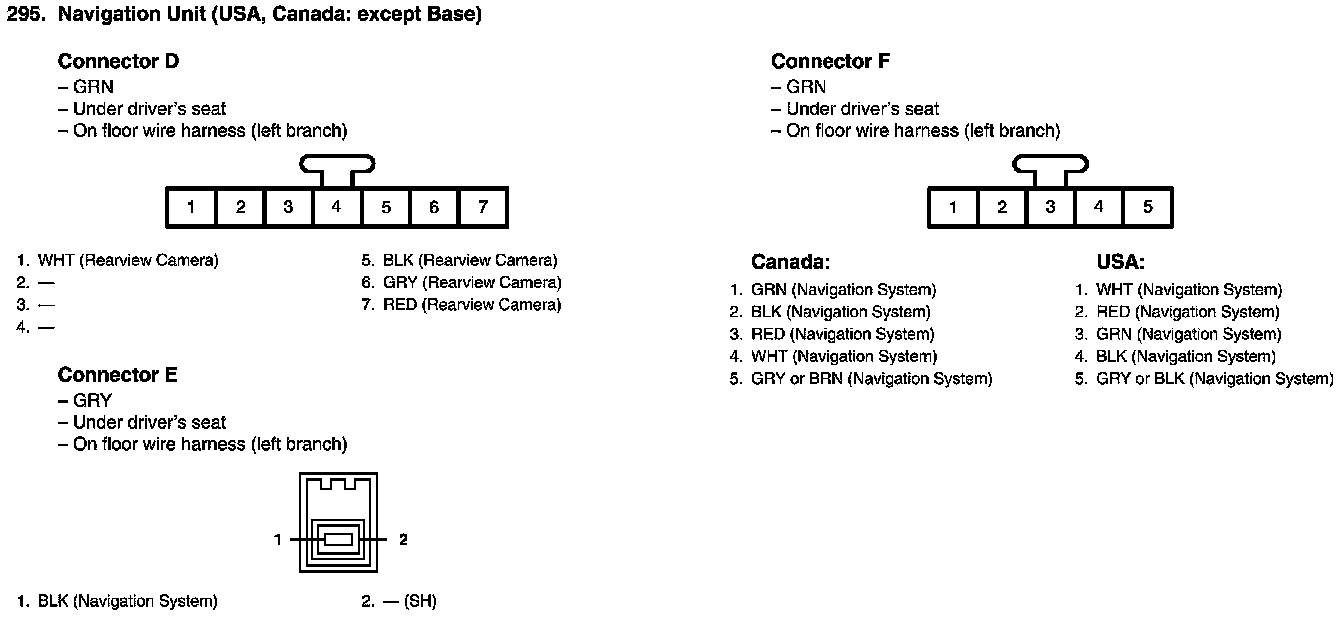

Navigation Unit Connector View (Acura Accessory)
Navigation Unit Connector View (Acura Accessory)
