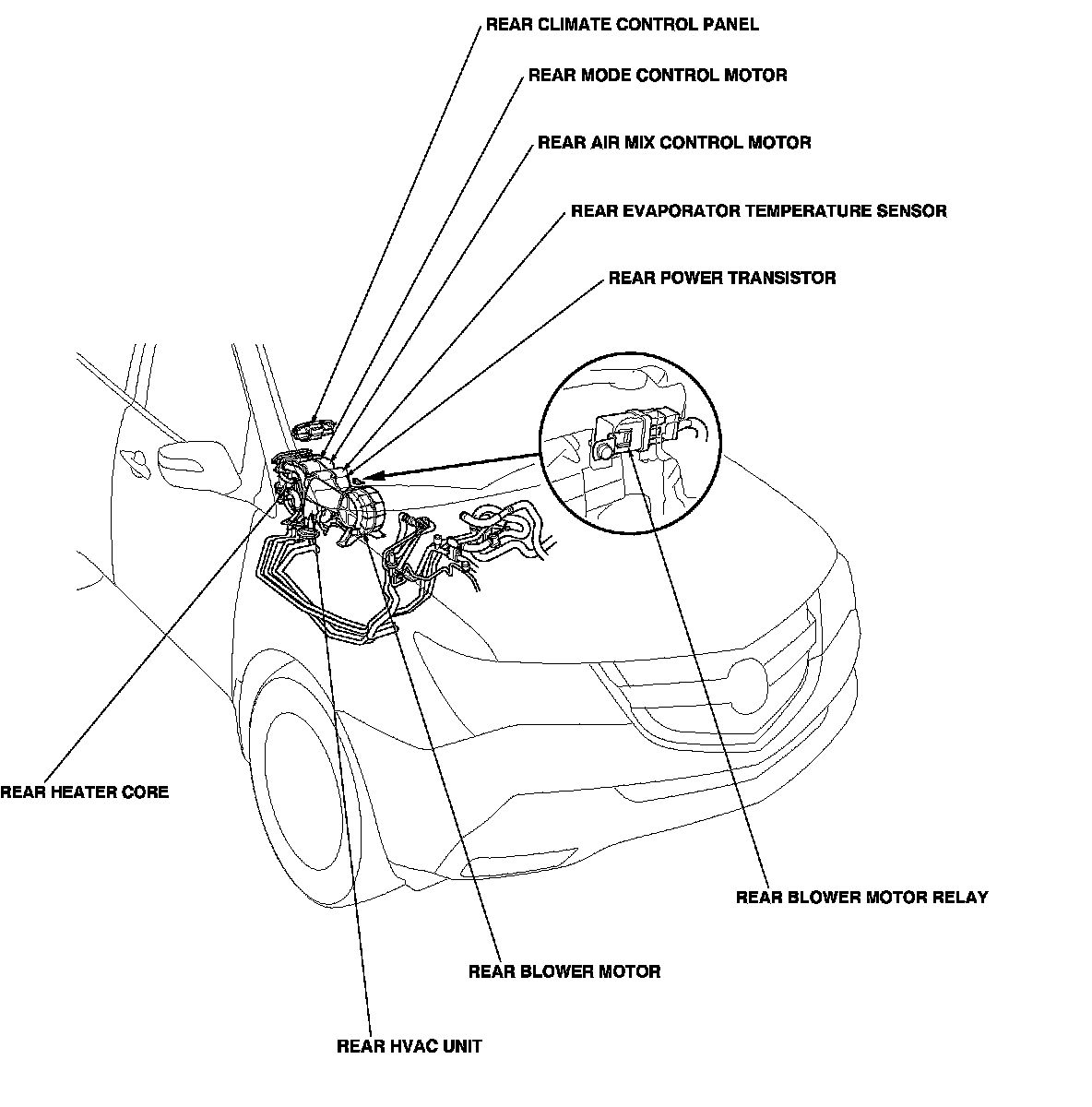

Rear Climate Control Component Location Index
Rear Climate Control Component Location Index
Rear Climate Control Component Location Index
