Hazard Warning Switch Test/Replacement

Hazard Warning Switch Test/Replacement

1. Remove the center panel. Dashboard Center Panel Removal/Installation

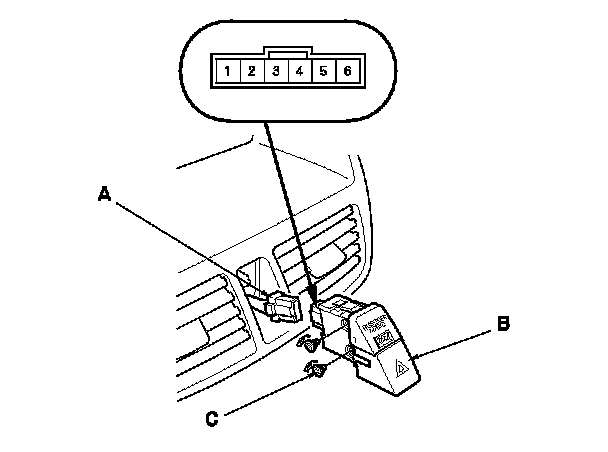

2. Disconnect the 6P connector (A) from the hazard warning switch (B).

3. Remove the hazard warning switch from the center panel.

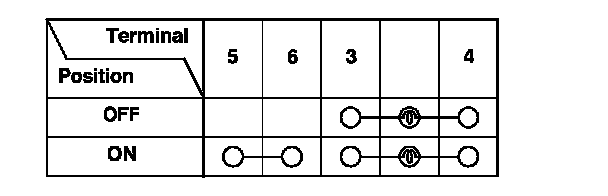

4. Check for continuity between the terminals in each switch position according to the table.

5. If the continuity is not as specified, replace the bulb (C) or the hazard warning switch.
