Front Accessory Power Socket Test/Replacement

Front Accessory Power Socket Test/Replacement

1. Remove the console panel. Center Console Removal/Installation

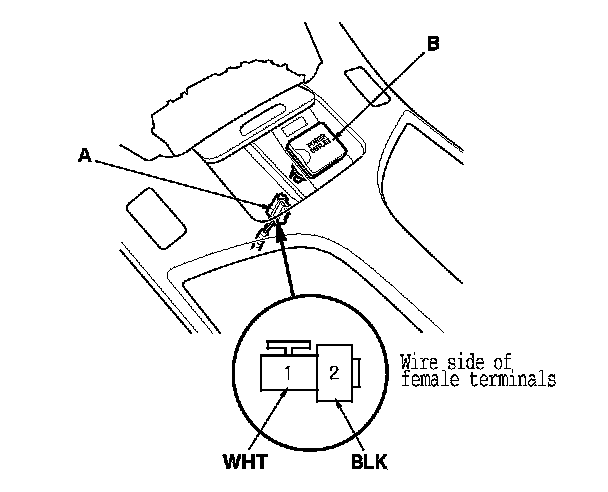

2. Disconnect the 2P connector (A) from the front accessory power socket (B).

3. Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary and recheck the system.

- If the terminals look OK, go to step 4.

4. Turn the ignition switch to ACCESSORY (I).

5. Measure the voltage between the terminal No. 1 and body ground. There should be battery voltage.
- If there is battery voltage, go to step 6.

- If there is no battery voltage, check for:
- Blown No. 32 (10 A) fuse in the under-dash fuse/relay box.

- Blown No. 9 (15 A) fuse in the under-dash fuse/relay box.

- Faulty accessory power socket relay.

- Faulty under-dash fuse/relay box.

- Poor ground (G601).

- An open in the wire.

6. Check for continuity between the terminal No. 2 and body ground. There should be continuity.
- If there is continuity, go to step 7.

- If there is no continuity, check for:
- Poor ground (G507).

- An open in the wire.

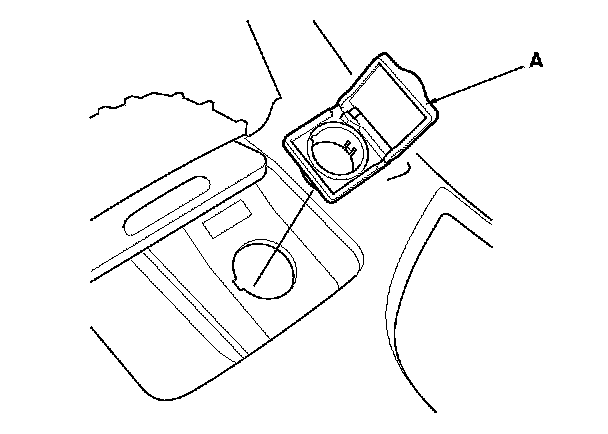

7. Remove the socket (A).

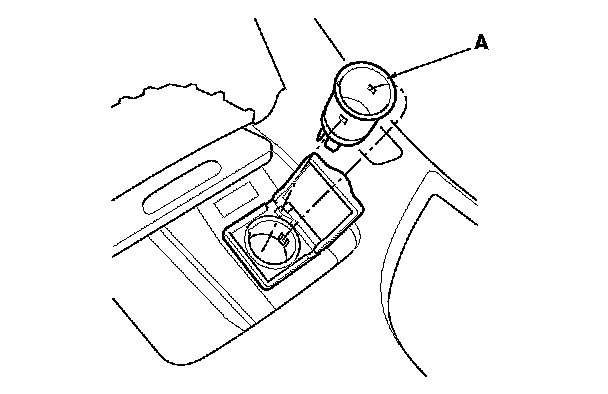

8. Remove the housing (A).

9. Install the power socket in the reverse order of removal.
