AC Inverter Unit Input Test

AC Inverter Unit Input Test

1. Do the battery terminal disconnection procedure. Procedures

2. Remove the driver's console side trim. Center Console Removal/Installation

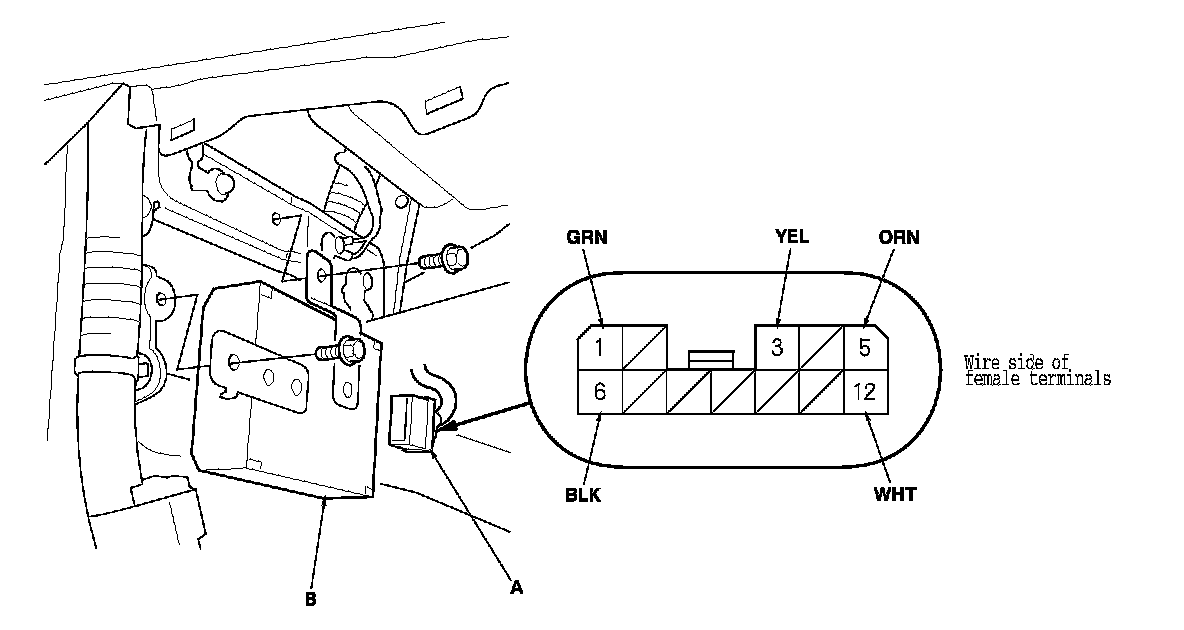

3. Disconnect the 12P connector (A) from the AC inverter unit (B).

4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

- If the terminals look OK, go to step 5.

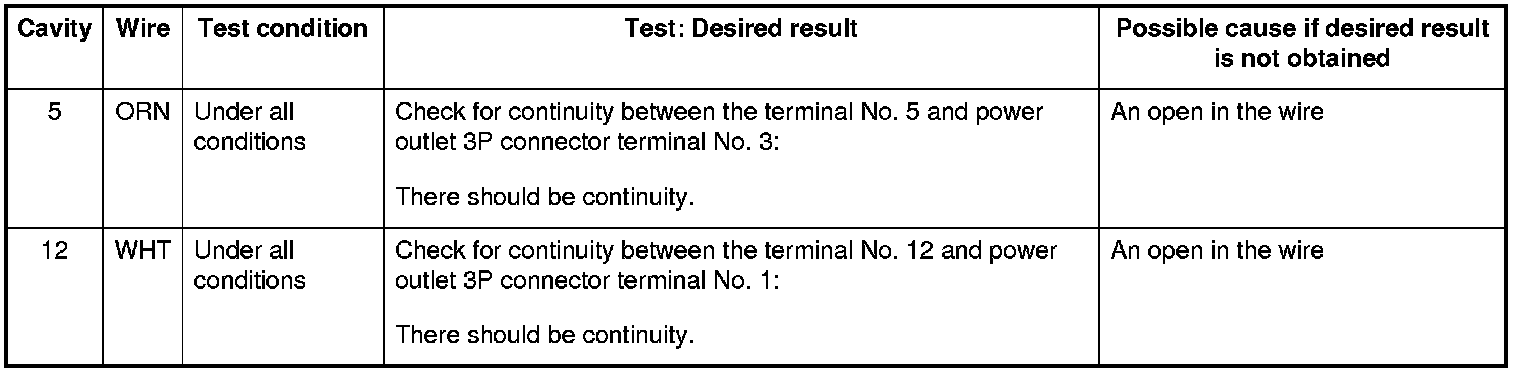

5. With the connector still disconnected, do these input tests at the following connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 6.





6. Reconnect the connector, turn the ignition switch to ON (II), and do these input tests at the following connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, replace the AC inverter unit, then go to step 7.










7. After replacing the AC inverter unit, do the steering column position memorization, Programming and Relearning and enter the anti-theft codes for the audio system and the navigation system (if equipped), and set the clock (without navigation).
