Home >> Acura >> 2009 >> MDX V6-3.7L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Main Under-hood Fuse Box - Fuse-to-Components Index

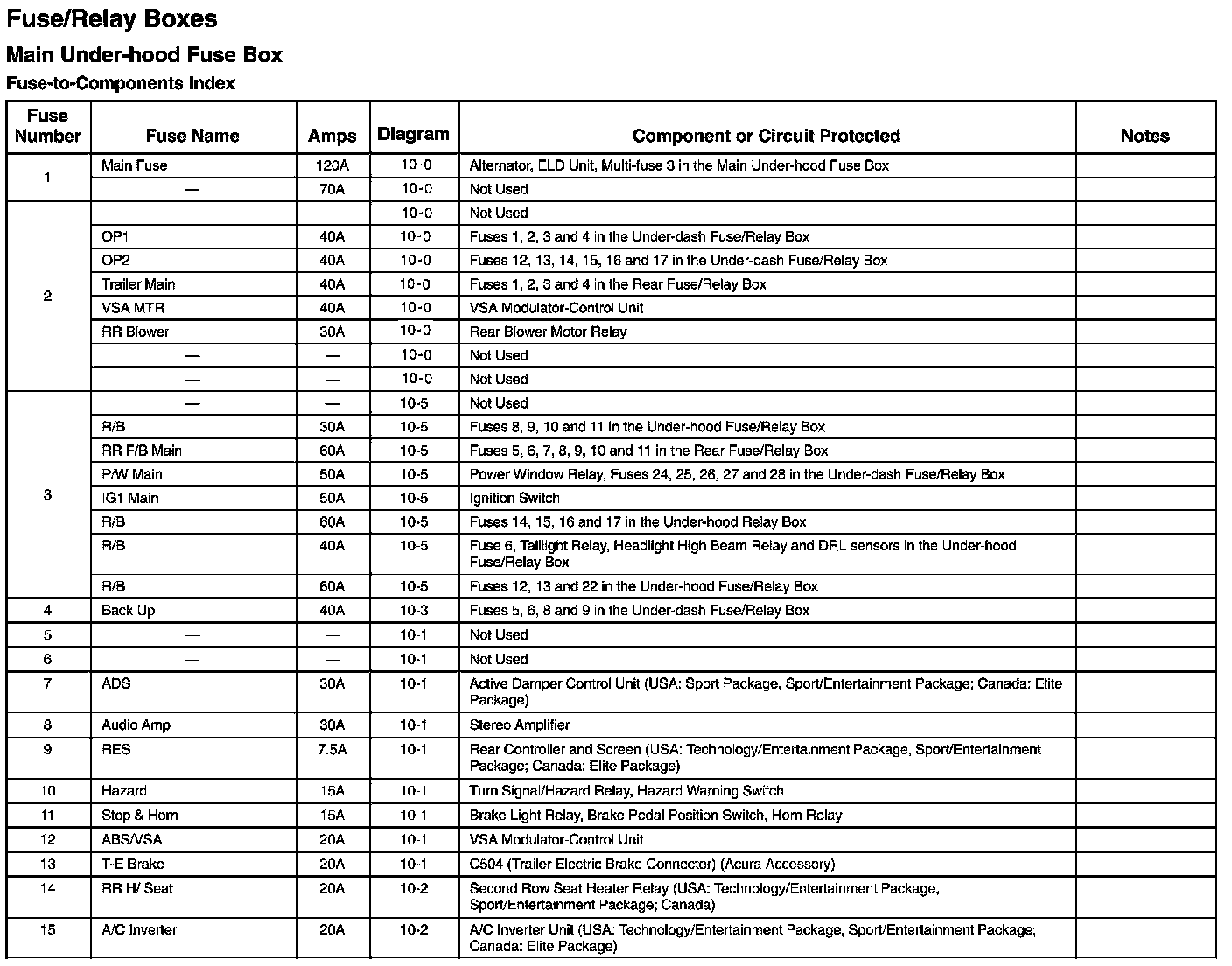

Main Under-hood Fuse Box - Fuse-to-Components Index
