Crankshaft Position Sensor: Service and Repair

CKP Sensor Replacement

1. Move the auto-tensioner to remove tension from the drive belt, then remove the belt. Service and Repair

2. Remove the crankshaft pulley. Service and Repair

3. Remove the upper and lower front covers from the engine. Timing Belt Removal

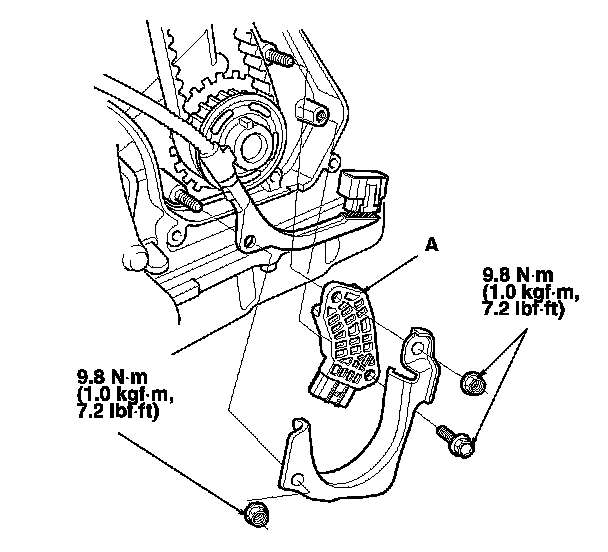

4. Remove the CKP sensor (A) from the oil pump.

5. Install the parts in the reverse order of removal.

6. Do the CKP pattern clear/CKP pattern learn procedure. Initial Inspection and Diagnostic Overview
