Fuel Tank Unit Removal and Installation
Fuel Tank Unit Removal and Installation
Special Tools Required
- Fuel sender wrench 07AAA-S0XA100
Removal
1. Relieve the fuel pressure. Service and Repair
2. Remove the second row seat. Second Row Seat Removal/Installation

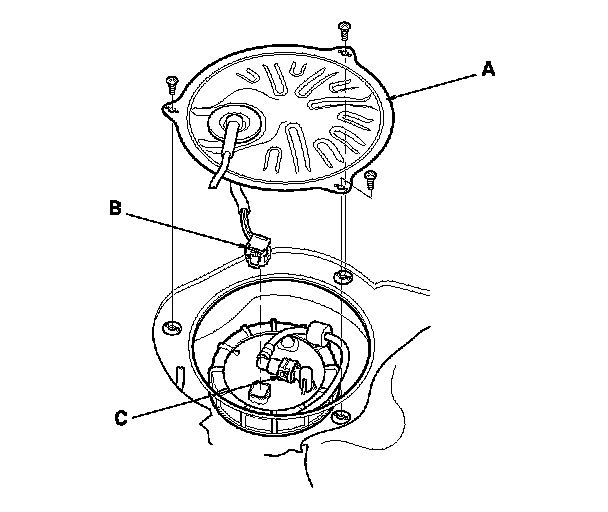

3. Remove the access panel (A) from the floor.
4. Disconnect the fuel tank unit 4P connector (B).
5. Disconnect the quick-connect fitting (C) from the fuel tank unit.

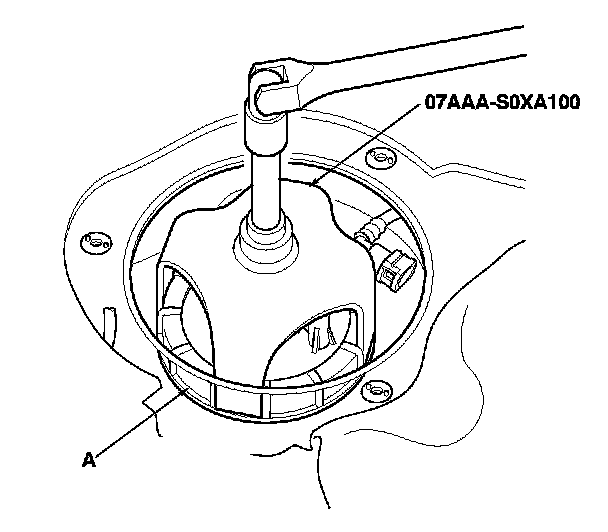

6. Using the fuel sender wrench, loosen the locknut (A).

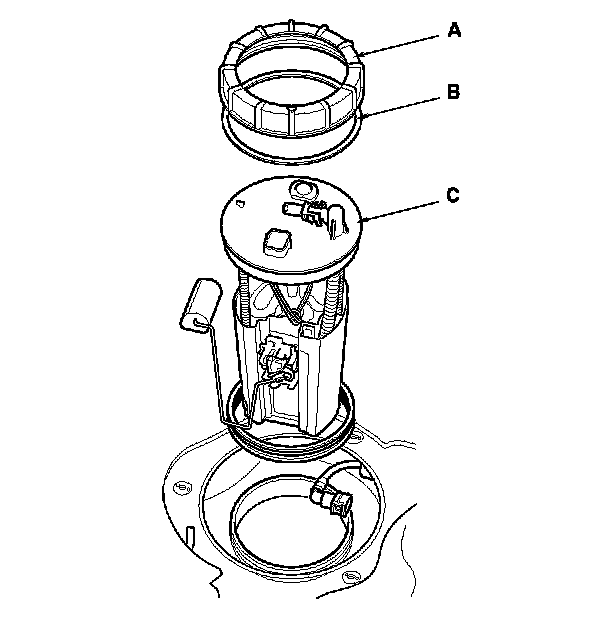

7. Remove the locknut (A), locknut plate (B), and fuel tank unit (C).
Installation

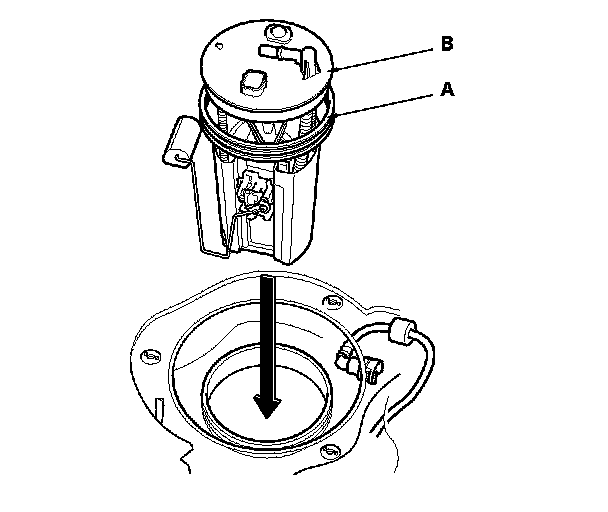

1. Temporarily attach a new base gasket (A) to the fuel tank unit (B), then insert the fuel tank unit partially into the fuel tank.
NOTE:
- Be careful not to damage the new base gasket.
- Be careful not to bend the fuel gauge sending unit.
- Do not coat the base gasket with oil.
2. Transfer the base gasket (A) from the fuel tank unit to the fuel tank.

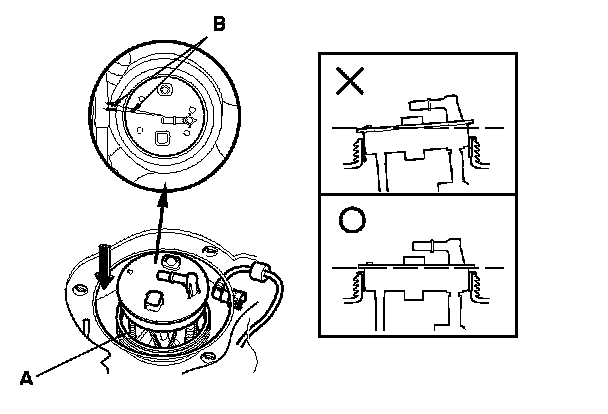

3. Align the marks (B) on the fuel tank and the fuel tank unit, then insert the fuel tank unit into the fuel tank until it sits on the base gasket.
NOTE: To prevent a fuel leak, check the base gasket, visually or by hand, to make sure it is not pinched.

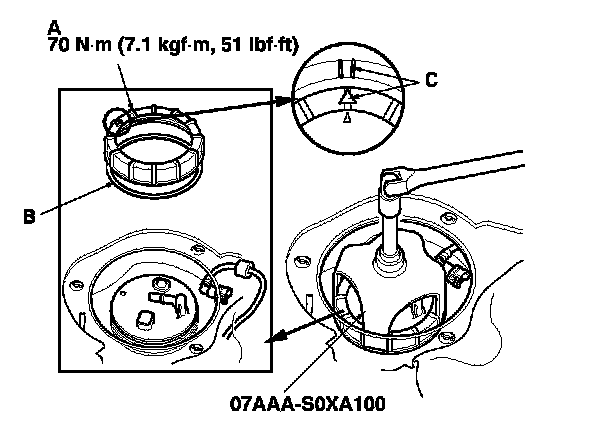

4. Using the tool, tighten the new locknut (A) with a new locknut plate (B) to the specified torque.
NOTE:
- Before tightening, align the marks (C) on the fuel tank and the locknut.
- After tightening, make sure the marks are still aligned.
- After installation, check the base gasket visually or by hand to be sure it is not pinched.
5. Connect the fuel tank unit 4P connector.
6. Reconnect the quick-connect fitting to the fuel tank unit.
7. Do the battery terminal reconnection procedure. Procedures
8. Turn the ignition switch to ON (II) (but do not operate the starter motor). The fuel pump will run for about 2 seconds, and fuel pressure will rise. Repeat two or three times, and check that there is no leakage in the fuel supply system.
9. Install the access panel on the floor.
10. Install the second row seat. Second Row Seat Removal/Installation
