EGR Valve: Service and Repair

EGR Valve Replacement

1. Remove the engine cover. Intake Manifold Removal and Installation

2. Remove the main under-hood fuse box.

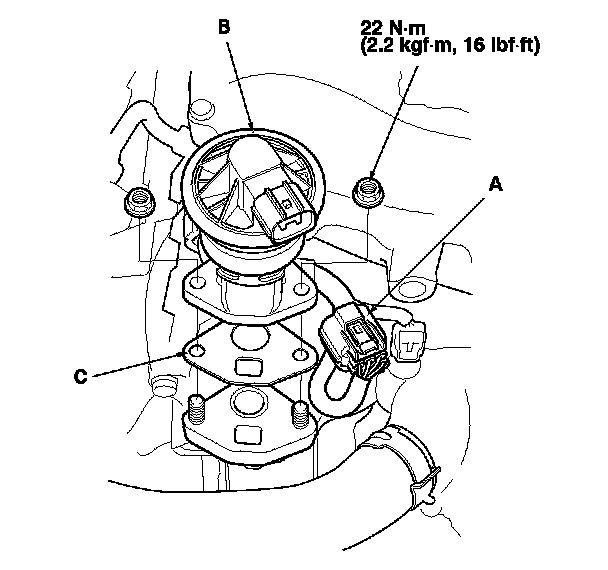

3. Disconnect the EGR valve connector (A).

4. Remove the EGR valve (B).

5. Install the parts in the reverse order of removal with a new gasket (C).
