A/T Shift Lock Solenoid Test

A/T Shift Lock Solenoid Test

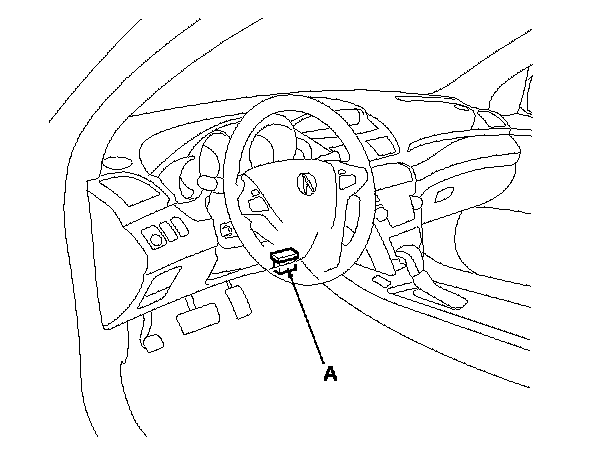

1. Connect the HDS to the DLC (A).

2. Select the Shift Lock Solenoid Test in the Miscellaneous Test Menu, and check that the shift lock solenoid operates with the HDS.
NOTE: If the HDS does not communicate with the PCM, troubleshoot the DLC circuit. Testing and Inspection

3. Check that the shift lever can be moved out of P when the Shift Lock Solenoid is: ON. Move the shift lever back in P, and make sure it locks when the Shift Lock Solenoid is: OFF.

4. Check that the shift lock releases when the shift lock release is pushed, and check that it locks when the shift lock release is released.

5. If the shift lock solenoid does not work properly, perform shift lock system troubleshooting. Interlock System - Shift Lock System Circuit Troubleshooting
