A/T Stall Speed Test

A/T Stall Speed Test

1. Make sure the transmission fluid is filled to the proper level. ATF Level Check

2. Apply the parking brake, and block all four wheels.

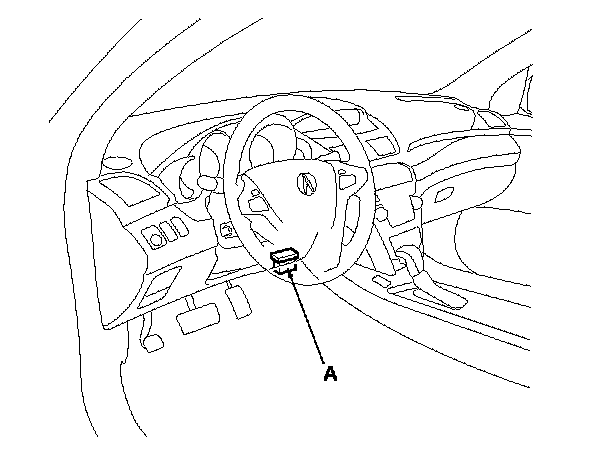

3. Connect the HDS to the DLC (A), and go to the A/T data list. If the HDS does not communicate with the PCM, troubleshoot the DLC circuit. Testing and Inspection

4. Make sure the A/C switch is OFF.

5. After the engine has warmed up to normal operating temperature (the radiator fan comes on), shift to D.

6. Firmly press and hold the brake pedal then, while still holding the brake pedal, press the accelerator pedal for six to eight seconds, and note max engine speed. Do not move the shift lever while raising the engine speed.

7. Allow 2 minutes for cooling, then repeat the test in R.
NOTE:

- Do not test stall speed for more than 10 seconds at a time.

- Stall speed tests results should be used for diagnostic purposes only.

- Stall speed should be the same in D and R.

- Do not test stall speed with A/T pressure gauges installed.

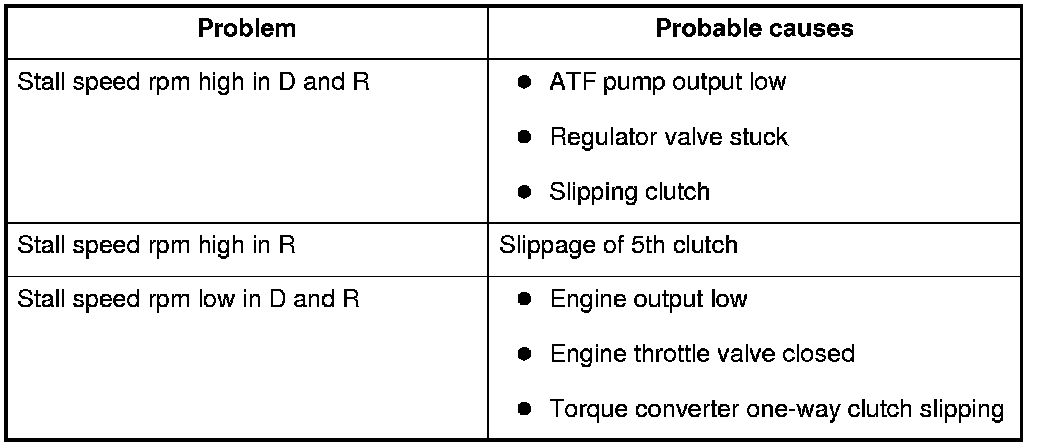

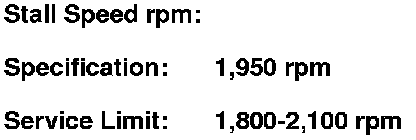

8. If any of the stall speeds are out of the service limit, the possible problems and probable causes are listed in the table.
