Front Impact Sensor Replacement

Front Impact Sensor Replacement

Removal

1. Do the battery terminal disconnection procedure, Procedures then wait for 3 minutes before starting work.

2. Disconnect the driver's airbag 4P connector, Service and Repair the front passenger's airbag 4P connector, Service and Repair and both seat belt tensioner 4P connectors. Service and Repair

3. Remove the front bumper. Service and Repair

4. Disconnect the left or right engine compartment wire harness 2P connector (A). Using a TORX T30 bit, remove the TORX bolts (B), then remove the front impact sensor (C).






Installation

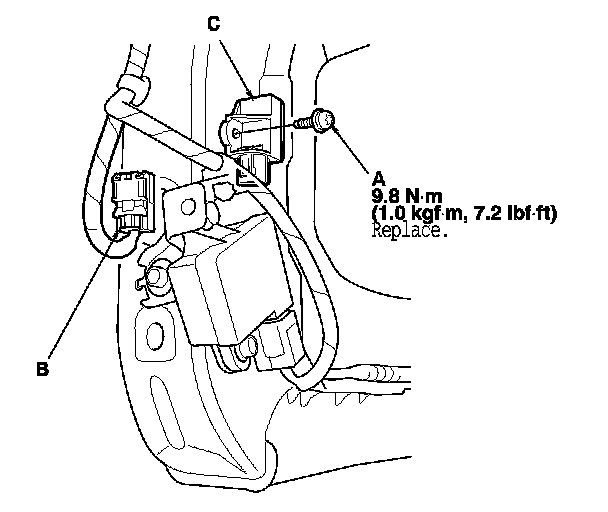

1. Install the new front impact sensor with a new TORX bolts (A), then connect the left or right engine compartment wire harness 2P connector (B) to the front impact sensor (C).

2. Do the battery terminal reconnection procedure. Procedures

3. After installing the front impact sensor, confirm proper system operation: Turn the ignition switch to ON (II); the SRS indicator should come on for about 6 seconds and then go off.

4. Reinstall all removed parts.
