Tightening Torques and Sequences

Exploded Views

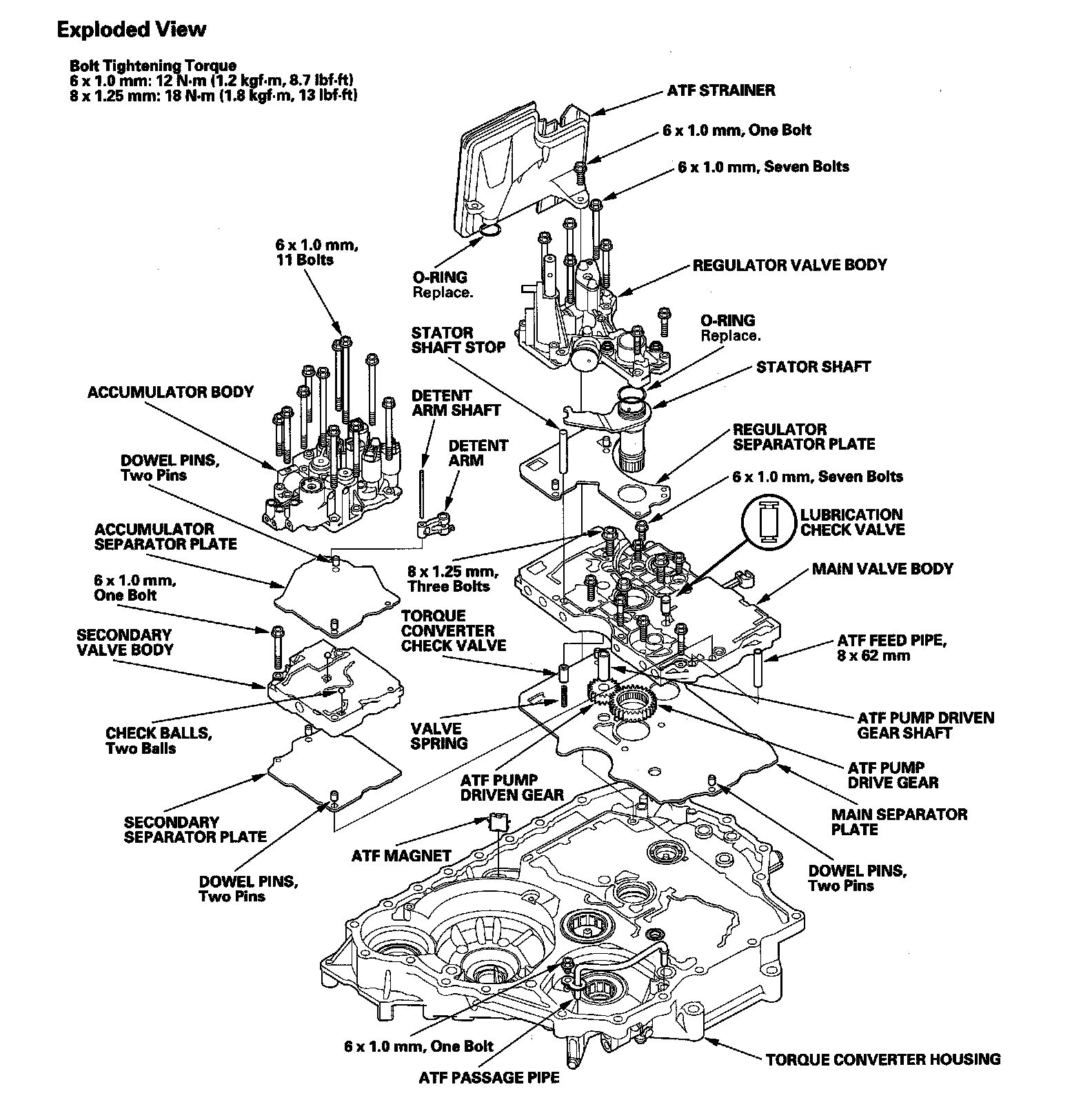

Automatic Transmission:

Countershaft:

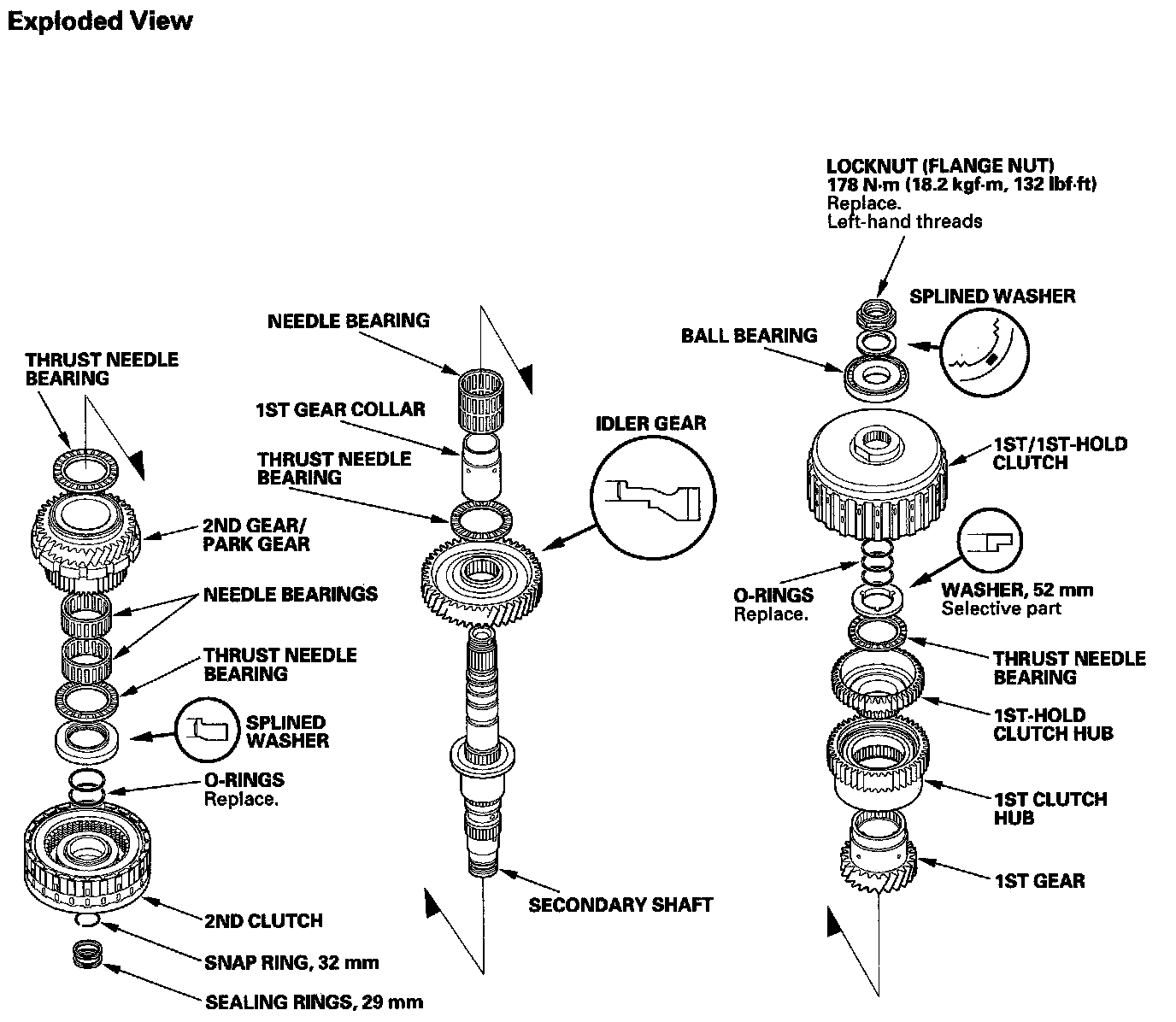

Secondary Shaft:

Drive Plate
Torque 74 Nm (7.5 kgf-m, 54 ft lb)

Tighten in a crisscross pattern in two or more steps


For information regarding Transmission Overhaul Specifications, please refer to Service and Repair, Overhaul. Overhaul
