Rear Power Window Switch Test/Replacement

Rear Power Window Switch Test/Replacement

1. Remove the rear door panel, Rear Door Panel Removal/Installation and disconnect the 14P connector from the rear power window switch.

2. Remove the power window switch panel. Rear Door Panel Removal/Installation

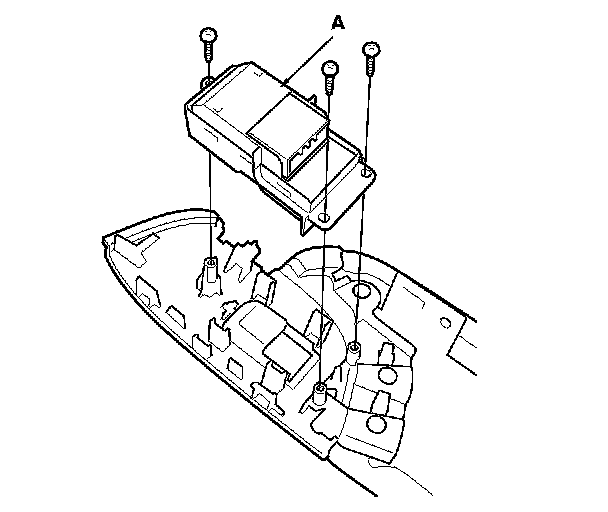

3. Remove the three mounting screws and the rear power window switch (A).

4. Swap the rear power window switch with another known-good power window switch and test. If the original power window switch is faulty; replace it.

5. Install the switch in the reverse order of removal.

6. Reset the power window control unit. Testing and Inspection
