Wiper Switch: Service and Repair

Wiper/Washer Switch Replacement

NOTE: The wiper/washer switch is built into the combination switch control unit. For the wiper/washer test, refer to the combination switch control unit input test. Wiper/Washer Switch (Combination Switch Control Unit) Input Test

1. Remove the dashboard lower cover. Driver's Dashboard Lower Cover Removal/Installation

2. Remove the steering column covers. Service and Repair

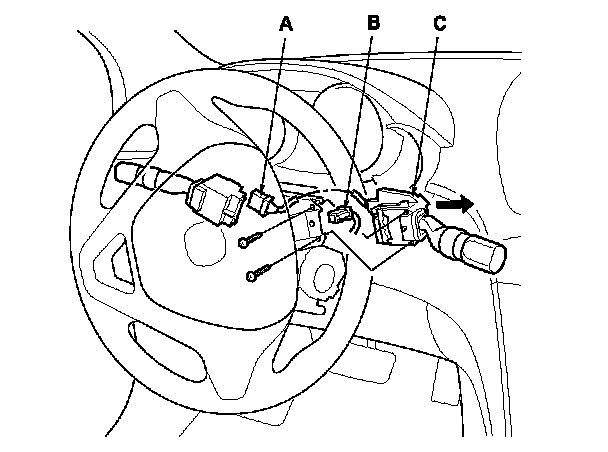

3. Disconnect the combination light switch 20P connector (A), and dashboard wire harness 8P connector (B) from the wiper/washer switch (C).

4. Remove the two screws, then slide out the wiper/washer switch.
