Air Register: Service and Repair

Dashboard Side Vent Removal/Installation

NOTE: Take care not to scratch the dashboard, and related parts.

1. Remove the driver's switch panel. Dashboard Driver's Switch Panel Removal/Installation
For the right side outlet: Detach the hook of the glove box damper and release the glove box stop on each side from the dashboard by pushing them inside. Glove Box Removal/Installation

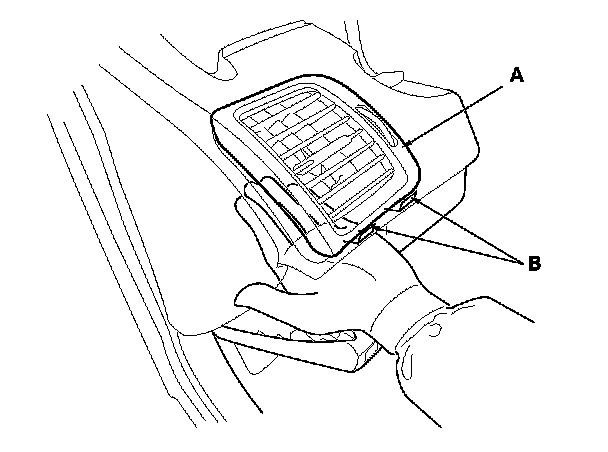

2. Push the back of the dashboard side vent (A) by hand from the driver's switch panel or glove box opening to release the hooks (B) on the side vent. Gently pull out the side vent to remove it.

3. Install the side vent in the reverse order of removal.
