Sound Proofing / Insulation: Locations

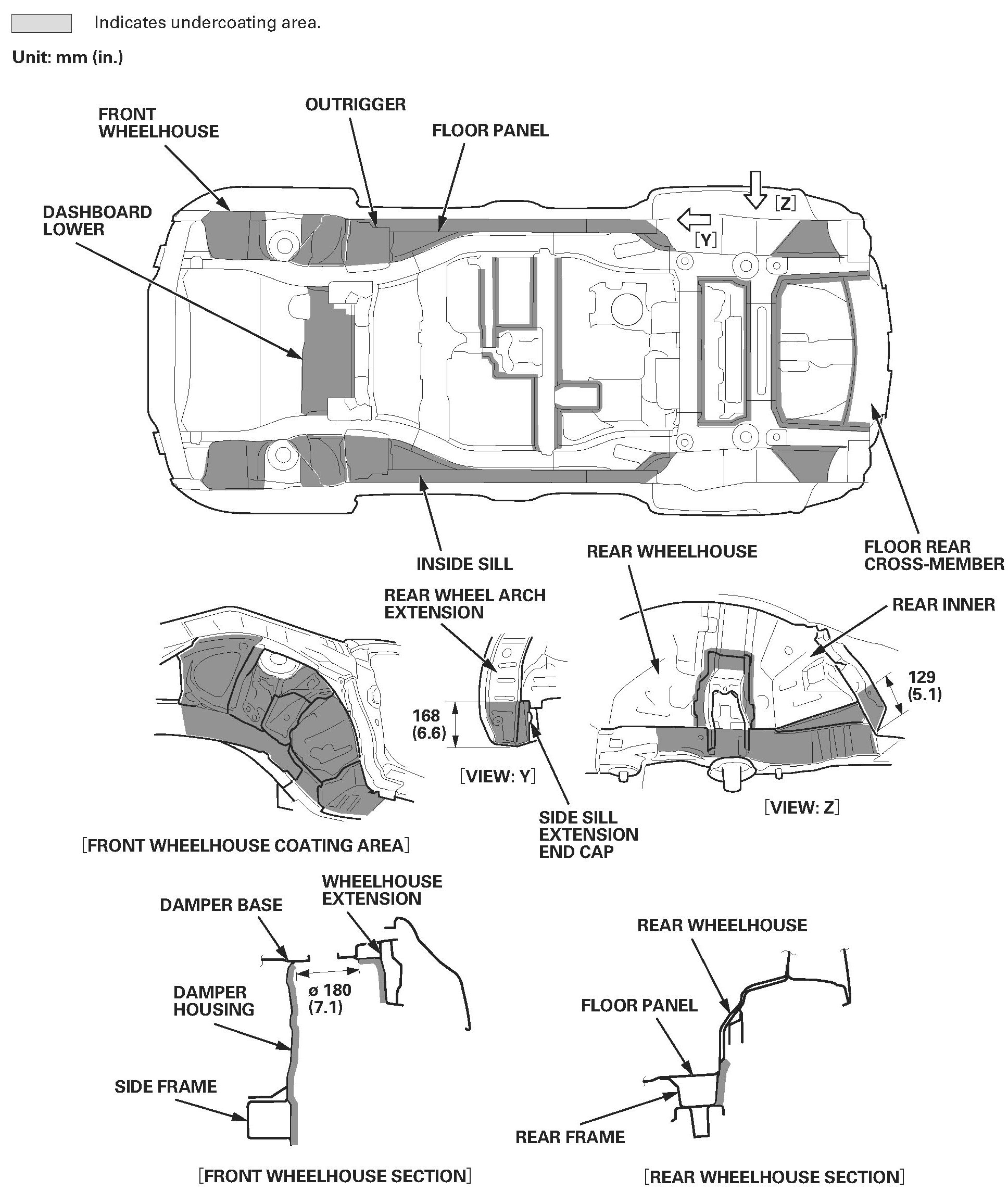

Undercoating Diagram


NOTE:
- Coating thickness: 0.4 mm (0.016 in.) MIN.
- Front wheelhouse, rear wheelhouse, and dashboard lower coating thickness 0.5 mm (0.02 in.).
