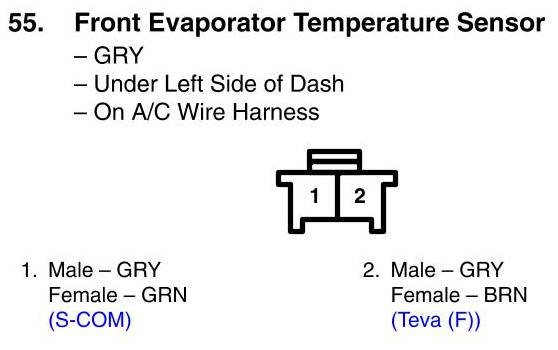

View 55 - Front Evaporator Temperature Sensor Connector View
View 55 - Front Evaporator Temperature Sensor Connector View
