Transmission Mount Replacement

Transmission Mount Replacement

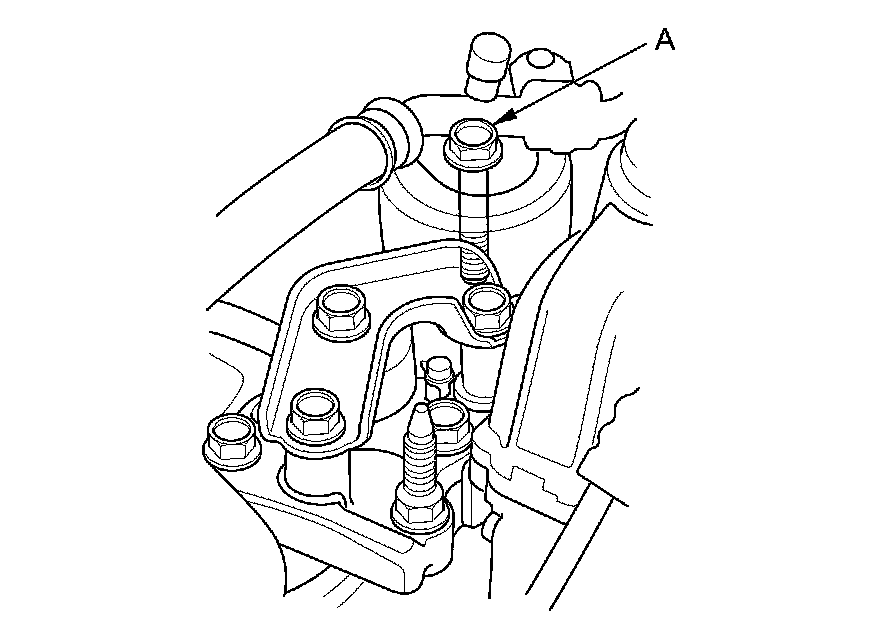

1. Loosen the upper torque rod mounting bolt (A).






2. Remove the air cleaner Service and Repair.

3. Remove the heater hoses from the clamps (A), then remove the bolt (B) securing the heater hose clamp bracket.






4. Support the transmission with a jack and wood block under the transmission.

5. Remove the harness clamps (A), then remove the transmission mount stiffener (B) and transmission mount (C).





6. Install the transmission mount with the new transmission mount mounting bolts (D), then install the transmission mount stiffener and the harness clamps.

7. Loosely install the new transmission mount mounting bolt and nuts (E) on the transmission case.

8. Raise the vehicle on the lift.

9. Loosen the lower torque rod mounting bolt (A).






10. Lower the vehicle on the lift.

11. Tighten the transmission mount mounting bolt and nuts.






12. Raise the vehicle on the lift.

13. Tighten the lower torque rod mounting bolt.






14. Lower the vehicle on the lift.

15. Install heater hose clamp bracket (A), then install the heater hoses to the clamps (B).






16. Install the air cleaner Service and Repair.

17. Tighten the upper torque rod mounting bolt.
