Advanced Diagnostics

Advanced Diagnostics - DTC P1454: Fuel Tank Pressure (FTP) Sensor Circuit Range/Performance Problem










General Description
The fuel tank pressure is about 0 kPa (0 inHg, 0 mmHg) when starting a cold engine. When the fuel tank pressure (FTP) sensor output value is out of a specified range and the powertrain control module (PCM) judges that there's no other cause [no evaporative emission (EVAP) canister vent shut valve failure, etc.] for the FTP sensor zero point shift, the PCM detects an FTP sensor malfunction.
However, if the FTP sensor output when starting the engine, is a prescribed negative value or less (excessive negative pressure is detected), the malfunction judgment should be done as follows because it is difficult to distinguish the FTP sensor zero point shift (P1454) from the EVAP canister vent shut valve failure (P2422).
1. If either Pending DTC P1454 or P2422 is not stored, the PCM stores both Confirmed DTCs.
2. If both P1454 and P2422 Pending DTCs are stored and an excessive negative pressure is detected, both P1454 and P2422 Confirmed DTCs are stored.
3. If either Pending DTC P1454 or P2422 is stored and an excessive negative pressure is detected, the PCM stores the Confirmed DTC of the Pending DTC that was stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

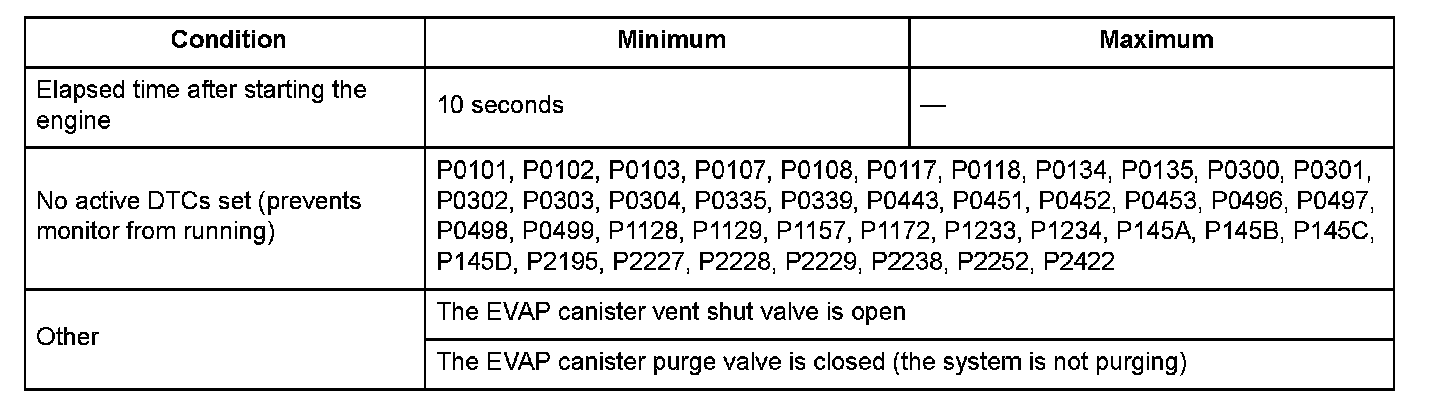

Enable Conditions






Malfunction Threshold
- The FTP sensor output fluctuates by 0.7 kPa (0.2 inHg, 5 mmHg) or more, or -0.7 kPa (-0.2 inHg, -5 mmHg) or less, for at least 8.0 seconds.
- The FTP sensor output value is -1.4 kPa (-0.4 inHg, -10 mmHg) or less for at least 8.0 seconds.

Driving Pattern
1. Start the engine, and let it idle until the radiator fan comes on.
2. When the diagnosis does not finish at idle, drive at 30 - 75 mph (48 - 120 km/h) at EVAP canister purge valve duty 20 % or more.

- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
