Under-Hood Fuse/Relay Box Removal/Installation

Under-Hood Fuse/Relay Box Removal and Installation

Special Tools Required

- Relay Puller 07AAC-000A2A1 or 07AAC-000A1A0

Removal

1. Do the battery terminal disconnection procedure Procedures.

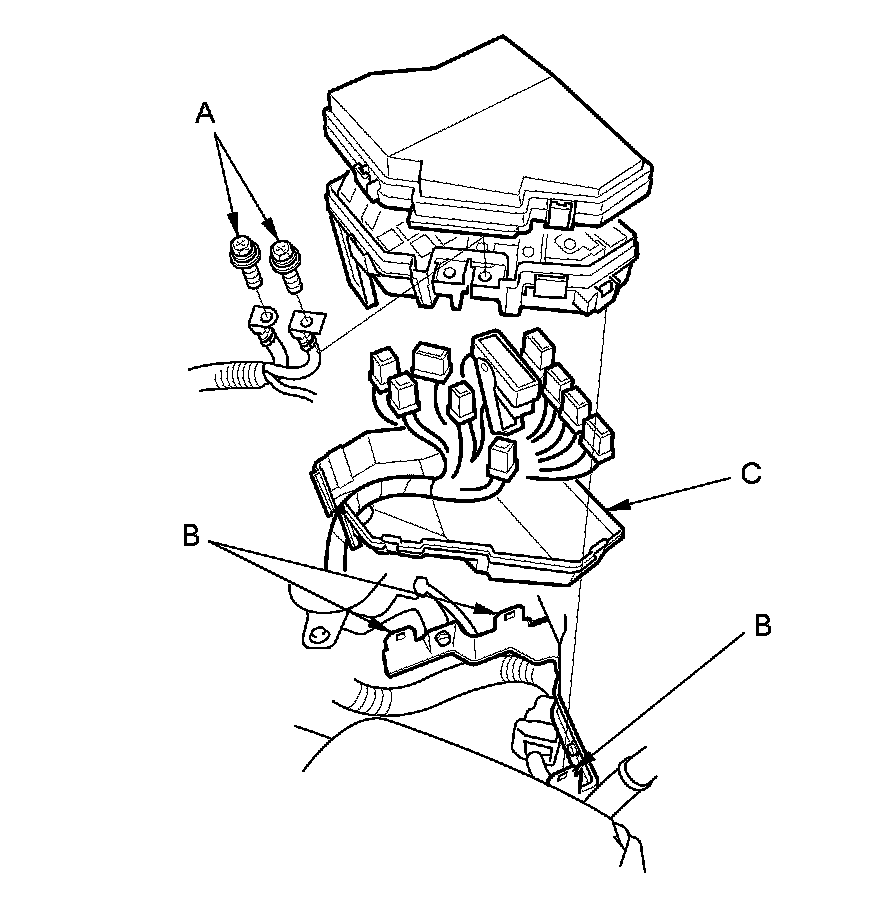

2. Remove the bolts (A) for the alternator and battery cable terminals from the under-hood fuse/relay box.





3. Release the tab (B), and then remove the bottom cover (C) from the under-hood fuse/ relay box.

4. Disconnect the connectors from the under-hood fuse/relay box.

5. Carefully remove the relays by using the relay puller.

NOTE: Do not use pliers. Pliers will damage the relays, which could cause the engine to stall or not start.

Installation

1. Install the relays and connect the connectors to the under-hood fuse/relay box, then install the under-hood fuse/relay box in the reverse order of removal.

2. Install the removed parts in the reverse order of removal.

3. Do the battery terminal reconnection procedure Procedures.

4. If the under-dash fuse/relay box is being replaced, register the immobilizer system with the HDS Programming and Relearning.

NOTE: The imoes unit is built into the MICU which is part of the under-dash fuse/relay box. You must register the imoes unit when replacing the under-dash fuse/relay box, or the engine will not start.

5. Confirm that all systems work properly.
