Component Tests and General Diagnostics
Starter System Circuit Troubleshooting
Special Tools Required
- Alternator, Regulator, Battery, and Starter Tester OTC3131
*Available through the Acura Tool and Equipment Program 888-424-6857
NOTE:
- Air temperature must be within 59-100 °F (15-38 °C) during this procedure.
- After this inspection, you must reset the powertrain control module (PCM). Otherwise, the PCM will continue to stop the fuel injectors from operating.
- The battery must be in good condition and fully charged.

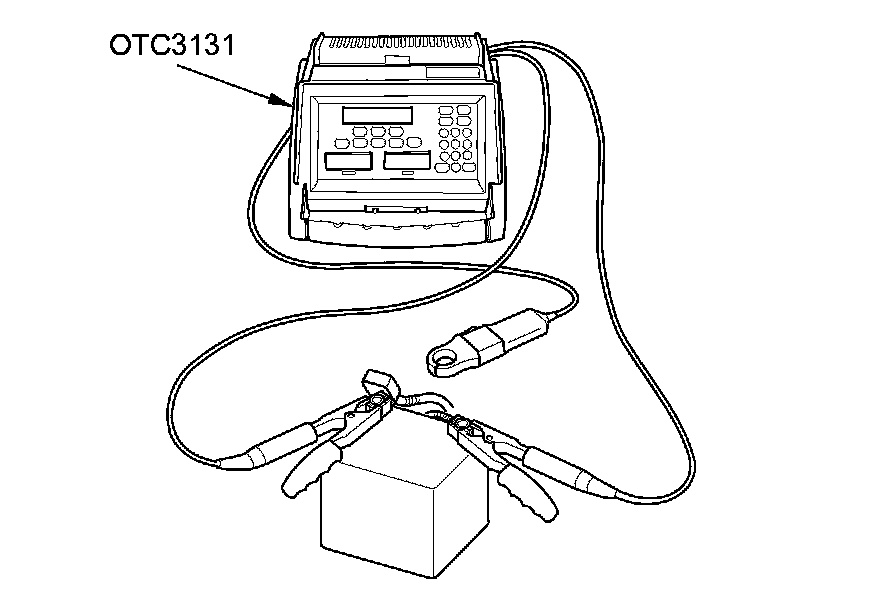

1. Connect the alternator, regulator, battery and starter tester (OTC3131) to the battery as shown.
NOTE: The probe is not used for battery testing.
2. Do the BATTERY TEST.
Does the display indicate GOOD or LOW CHARGE?
YES -
The battery is OK. Go to step 3.
NO -
If the tester indicates BAD BATTERY, replace the battery, then retest. If the tester indicates CHARGE & RETEST, charge the battery, then retest.
3. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) Initial Inspection and Diagnostic Overview.
4. Turn the ignition switch to ON (II).
5. Make sure the HDS communicates with the vehicle and the PCM. If it doesn't communicate, troubleshoot the DLC circuit Testing and Inspection.
6. Select PGM-FI, INSPECTION, then ALL INJECTORS STOP on the HDS.
7. Set the parking brake, then with the shift lever in N or P, turn the ignition switch to START (III).
Does the starter crank the engine normally?
YES -
The starting system is OK. Go to step 15.
NO -
Go to step 8.
8. Turn the ignition switch to LOCK (0).
9. Check the electrical connections at the battery, the negative battery cable to the body, the engine ground cables, and the starter for looseness and corrosion. Then try cranking the engine again.
Does the starter crank the engine normally?
YES -
Repairing the loose connection corrected the problem. The starting system is OK. Go to step 15.
NO -
Based on the following symptoms, take the appropriate action:
- If the starter does not crank the engine at all, go to step 10.
- If the starter cranks the engine erratically or too slowly, go to step 12.
- If the starter does not disengage from the torque converter ring gear when you release the key, replace the starter, or remove and disassemble it, and check for the following:�
- Starter solenoid and switch malfunction
- Dirty drive gear or damaged overrunning clutch
10. Make sure the shift lever is in the P or N, and set the parking brake. Disconnect the connector from the starter solenoid S terminal. Connect a jumper wire from the battery positive terminal to the solenoid terminal.
Does the starter crank the engine?
YES -
Go to step 9.
NO -
Remove the starter, and repair or replace as necessary.�
11. Check the following items in the order listed until you find the open circuit:
NOTE: After the open circuit or high resistance in the circuit is found and repaired, then go to step 13.
- The YEL wire and connectors between the auxiliary under-dash fuse holder and the ignition switch.
- The RED and BLK/WHT wire and connectors between the under-dash fuse/relay box and the starter.
- The ignition switch Ignition Switch Test.
- The transmission range switch and connector.
- The starter cut relays Testing and Inspection.
- The STS fuse.
12. Connect the alternator, regulator, battery and starter tester (OTC 3131) to battery.
13. Do the STARTING TEST.
Does the display indicate craning voltage greater than or equal to 8.5 V and is the current draw less than or equal to 380 A?
YES -
Go to step 14.
NO -
Replace the starter, or remove and disassemble it, and check for these problem:�
- Drag in the starter armature
- Short in the armature winding
- Excessive drag in the engine
- Open circuit in starter armature commutator segments
- Excessively worn starter brushes
- Open circuit in the starter brushes
- Dirty or damaged helical spline or drive gear
- Faulty drive gear clutch
14. Remove the starter, and inspect its drive gear and the torque converter ring for damage. Replace any damaged parts.
15. Select PCM reset Initial Inspection and Diagnostic Overview to cancel ALL INJECTORS STOP on the HDS.
