Integrated Accessory Switch Assembly: Service and Repair




Dashboard Driver's Switch Panel Removal/Installation

Special Tools Required

- KTC trim tool set SOJATP2014*
*Available through the Acura Tool and Equipment Program; 888-424-6857

NOTE:

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

- Take care not to scratch the trim and the panels.

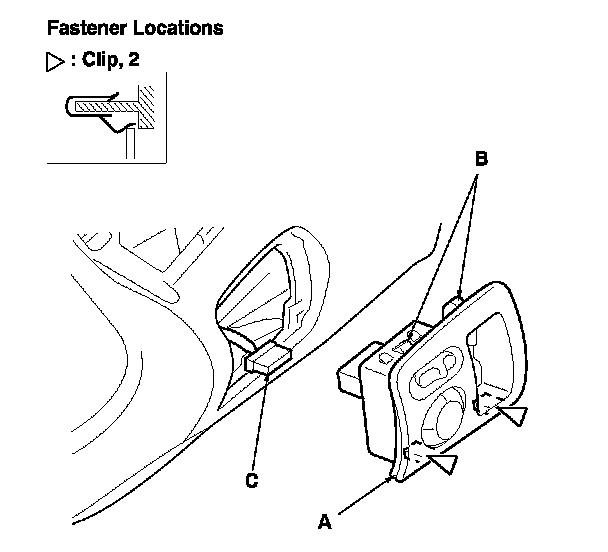

1. Gently pull out the driver's switch panel (A) to release the hooks (B) and detach the clips. Disconnect the power mirror switch connector (C), then remove the panel.

2. Install the panel in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Make sure the connector is plugged in properly.

- Push the clips and hooks into place securely.
