P1717
DTC Troubleshooting: P1717 (62)
DTC P1717:
Open in Transmission Range Switch ATPRVS Switch Circuit
NOTE:
- Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review General Troubleshooting Information Reading and Clearing Diagnostic Trouble Codes.
- This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
1. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.
2. Shift to R, and verify the A/T R Switch signal with the HDS in the A/T Data List.
Is the A/T R Switch ON?
YES -
Go to step 3.
NO -
Check for proper transmission range switch installation Service and Repair, adjust the shift cable Adjustments, then recheck.�
3. Check the Reverse Switch (ATPRVS) signal with the HDS.
Is the Reverse Switch (ATPRVS) ON?
YES -
Intermittent failure, the system is OK at this time.�
NO -
Go to step 4.
4. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
5. Disconnect the transmission range switch connector.
6. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

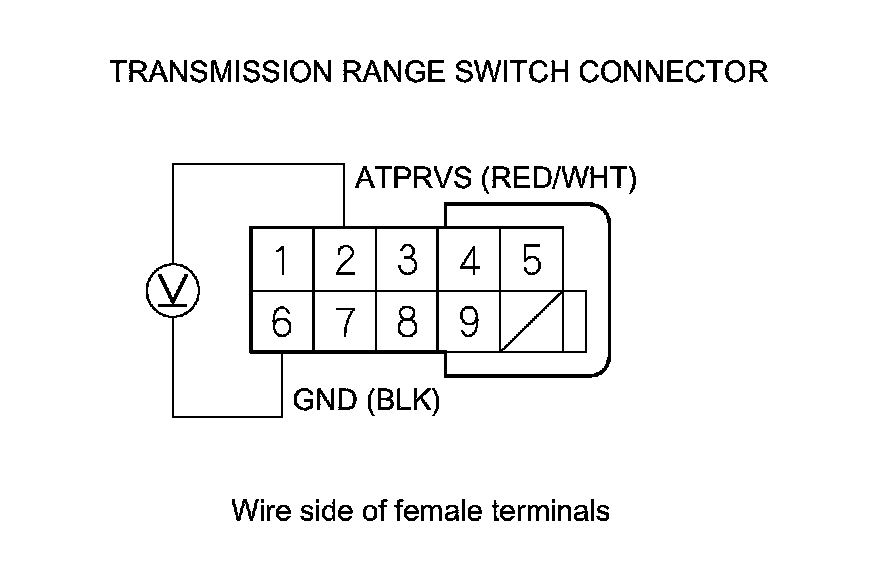

7. Measure the voltage between transmission range switch connector terminals No. 2 and No. 6.
Is there more than 5.0 V?
YES -
Go to step 8.
NO -
Repair open in the wire between PCM connector terminal C19 and the transmission range switch, then go to step 9.

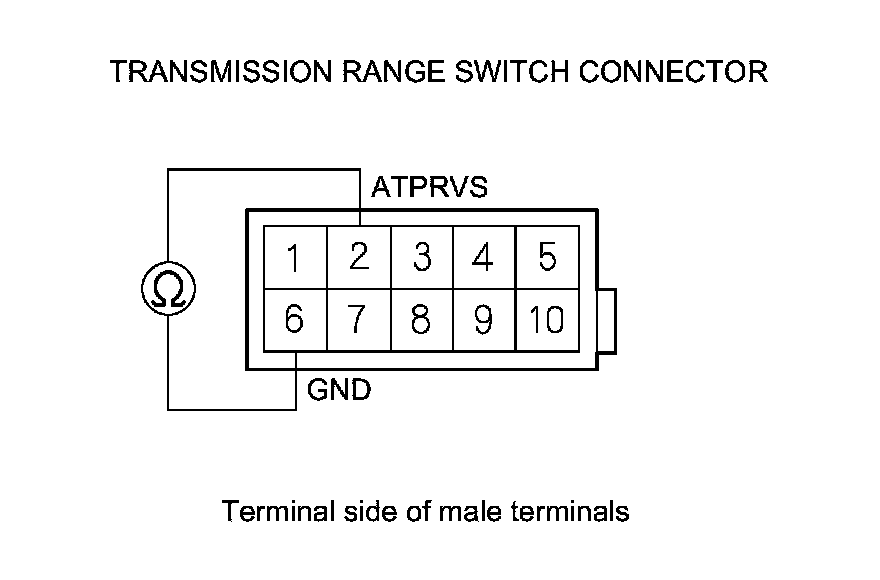

8. Check for continuity between the No. 2 and No. 6 terminals at the transmission range switch, when the shift lever is in P, R, and N, and no continuity when the shift lever is in D and S.
Is there continuity when the shift lever is in P, R, and N, and no continuity when the shift lever is in D and S?
YES -
Go to step 15.
NO -
Replace the transmission range switch Service and Repair, then go to step 12.
9. Reconnect all connectors.
10. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.
11. Clear the DTC with the HDS.
12. Start the engine in P. With the brake pedal pressed, shift to R, and wait for at least 2 seconds in R, then shift to N.
13. Check for Pending or Confirmed DTCs with the HDS.
Is DTC P1717 indicated?
YES -
Check for poor connections or loose terminals between the transmission range switch and the PCM, then go to step 1.
NO -
Go to step 14.
14. Monitor the OBD status for P1717 in the DTCs MENU with the HDS.
Does the HDS indicate PASSED?
YES -
Troubleshooting is complete. If any other Pending or Confirmed DTCs were indicated in step 13, go to the indicated DTC's troubleshooting.�
NO -
If the HDS indicates FAILED, check for poor connections or loose terminals between the transmission range switch and the PCM, then go to step 1. If the HDS indicates NOT COMPLETED, go to step 12.
15. Reconnect all connectors.
16. Update the PCM if it does not have the latest software ECM/PCM Update, or substitute a known-good PCM Initial Inspection and Diagnostic Overview.
17. Start the engine in P. With the brake pedal pressed, shift to R, and wait for at least 2 seconds in R, then shift to N.
18. Check for Pending or Confirmed DTCs with the HDS.
Is DTC P1717 indicated?
YES -
Check for poor connections or loose terminals between the transmission range switch and the PCM. If the PCM was updated, substitute a known-good PCM Initial Inspection and Diagnostic Overview, then go to step 17. If the PCM was substituted, go to step 1.
NO -
Go to step 19.
19. Monitor the OBD status for P1717 in the DTCs MENU with the HDS.
Does the HDS indicate PASSED?
YES -
If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the original PCM Service and Repair. If any other Pending or Confirmed DTCs were indicated in step 18, go to the indicated DTC's troubleshooting.�
NO -
If the HDS indicates FAILED, check for poor connections or loose terminals between the transmission range switch and the PCM. If the PCM was updated, substitute a known-good PCM Initial Inspection and Diagnostic Overview, then go to step 17. If the PCM was substituted, go to step 1. If the HDS indicates NOT COMPLETED, go to step 17.
