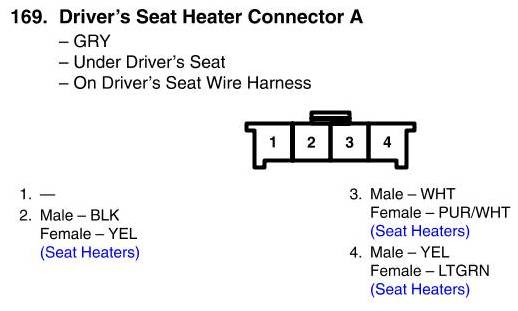

View 169 - Driver's Seat Heater Connector A Connector View
View 169 - Driver's Seat Heater Connector A Connector View
