Crankshaft Main Bearing

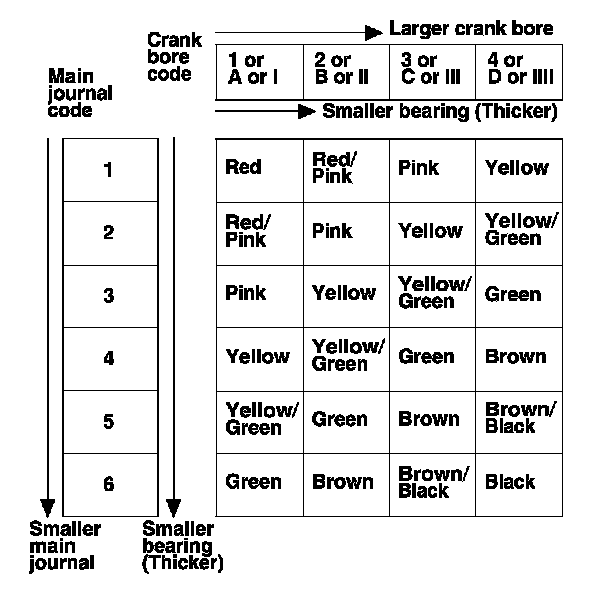

Crankshaft bearing Specifications
Crankshaft bearing

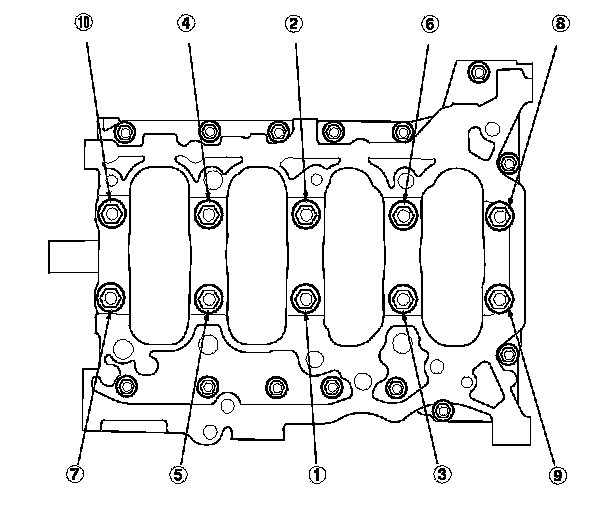

Main bearing cap
Torque 29 N-m (3.0 kgf-m, 22 lbf-ft)
Tighten additional 48 °

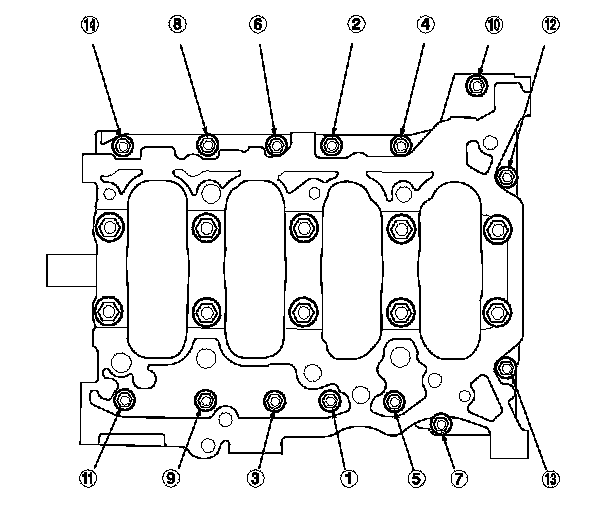

Torque the 8 mm bolts 22 N-m (2.2 kgf-m, 16 lbf-ft)

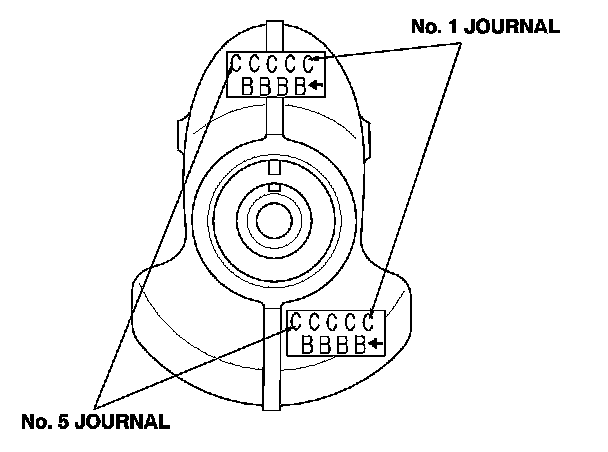

Main Journal Code Location
Crankshaft bearing Specifications
Crankshaft bearing
Main bearing cap
Torque 29 N-m (3.0 kgf-m, 22 lbf-ft)
Tighten additional 48 °
Torque the 8 mm bolts 22 N-m (2.2 kgf-m, 16 lbf-ft)
Main Journal Code Location
