MTF Inspection and Replacement

MTF Inspection and Replacement

1. Raise the vehicle on a lift, and make sure it is securely supported.

2. Remove the engine undercover (A) from the splash shield.

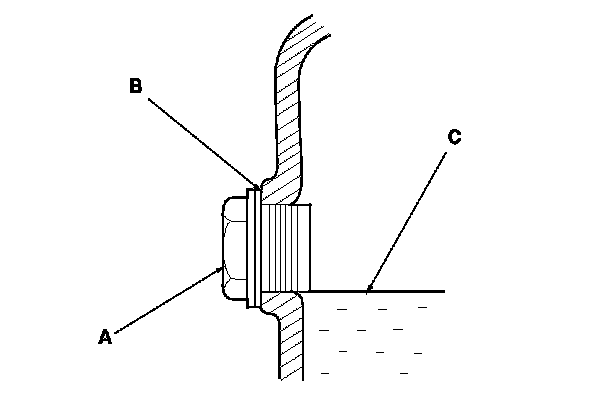

3. Remove the filler plug (A) and the sealing washer (B), check the condition of the MTF, and make sure it is at the proper level (C).






4. If the fluid is dirty, remove the drain plug (A) and the sealing washer (B), and drain the MTF.

5. Install the drain plug with a new sealing washer, and refill the transmission with MTF to the proper level. Always use Acura Manual Transmission Fluid (MTF).





6. Install the filler plug (C) with a new sealing washer (D).






7. Install the engine undercover (A) to the splash shield.

8. Lower the vehicle on the lift.

9. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC). Reading and Clearing Diagnostic Trouble Codes

10. Turn the ignition switch to ON (II).

11. Make sure the HDS communicates with the vehicle and the engine control module (ECM). If it does not communicate, go to the DLC circuit troubleshooting. Testing and Inspection

12. Select GAUGES MENU in the BODY ELECTRICAL with the HDS.

13. Select ADJUSTMENT in the GAUGES MENU with the HDS.

14. Select MAINTENANCE MINDER in the ADJUSTMENT with the HDS.

15. Select RESET in the MAINTENANCE MINDER with the HDS.

16. Select RESETTING THE MTF LIFE with the HDS.
