DTC Troubleshooting: B1232 or Indicator H and AUTO

DTC B1232 or DTC indicator H and AUTO: A Short in the Evaporator Temperature Sensor Circuit

1. Clear the DTC with the HDS.

2. Turn the ignition switch to LOCK (0), and then ON (II).

3. Do the self-diagnostic with the HDS Initial Inspection and Diagnostic Overview or climate control unit. Initial Inspection and Diagnostic Overview

4. Check for DTCs.

Is DTC B1232 or H and AUTO indicated?
YES - Go to step 5.

NO - Intermittent failure. Check for loose wires or poor connections on the evaporator temperature sensor circuit.


5. Turn the ignition switch to LOCK (0).

6. Disconnect climate control unit connectors A (28P) and B (12P).

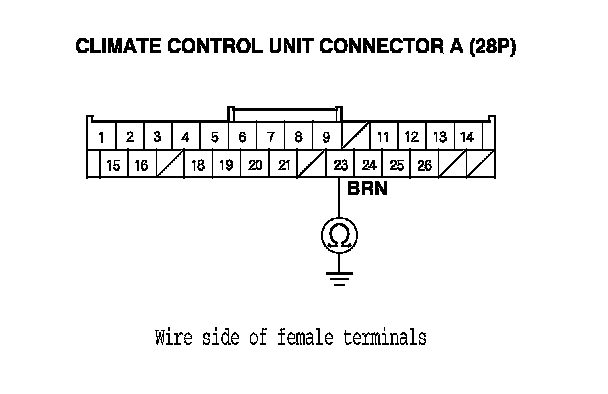

7. Check for continuity between climate control unit connector A (28P) terminal No. 23 and body ground.

Is there continuity?
YES - Repair a short to body ground in the wire between the climate control unit and the evaporator temperature sensor.

NO - Go to step 8.

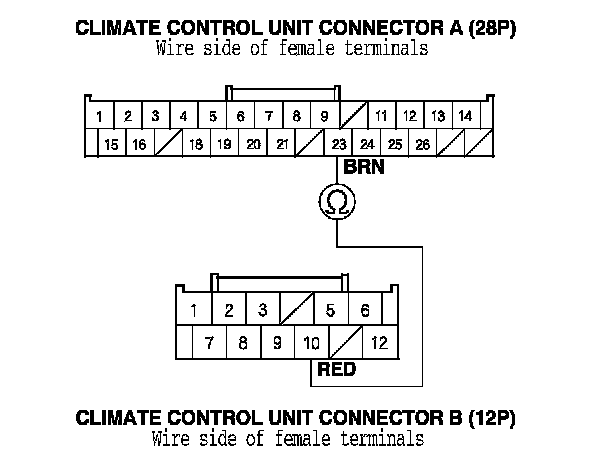

8. Check for continuity between climate control unit connector A (28P) terminal No. 23 and climate control unit connector B (12P) terminal No. 10.

Is there continuity?
YES - Repair a short in the wires between the climate control unit and the evaporator temperature sensor.

NO - Go to step 9.






9. Remove the evaporator temperature sensor, Service and Repair and test it. Evaporator Temperature Sensor Test

Is the evaporator temperature sensor OK?
YES - Substitute a known-good climate control unit, and recheck. If the symptom/indication goes away, replace the original climate control unit.

NO - Replace the evaporator temperature sensor. Service and Repair
