Home >> Acura >> 2010 >> TSX V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 171 - C102 Connector View

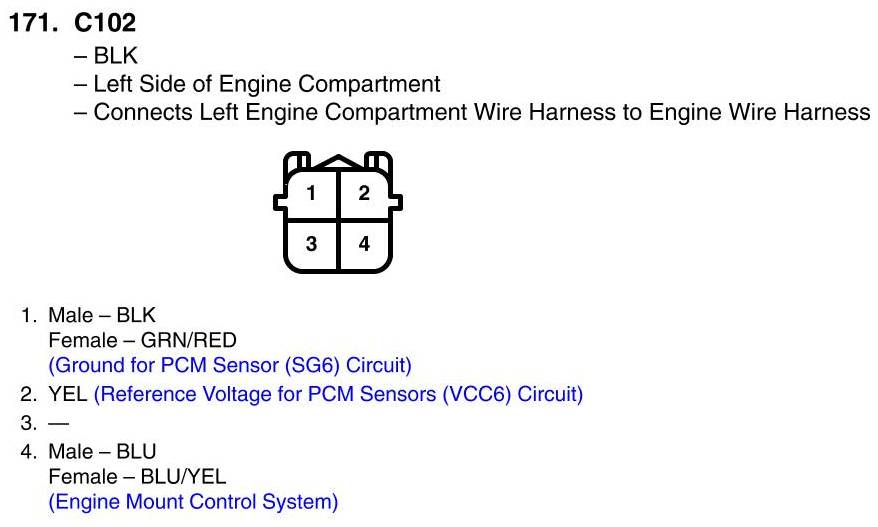

View 171 - C102 Connector View
