Operation CHARM
: Car repair manuals for everyone.
Home
>>
Acura
>>
2010
>>
TSX V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

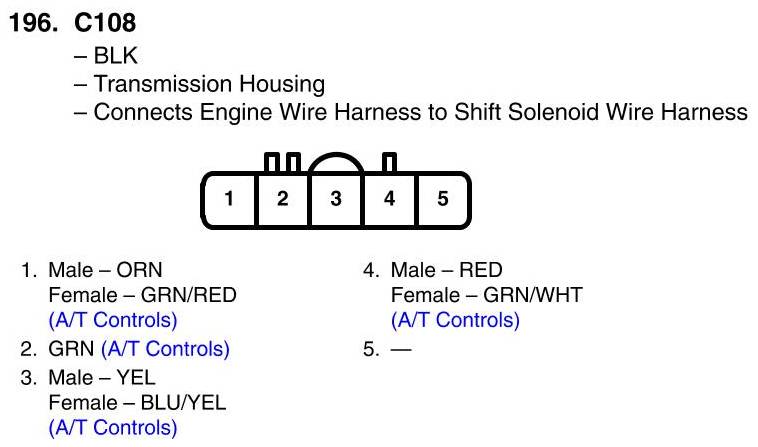

View 196 - C108 Connector View
View 196 - C108 Connector View
