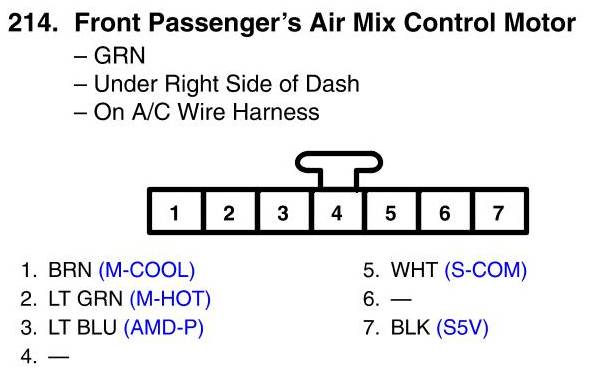

View 214 - Front Passenger's Air Mix Control Motor Connector View
View 214 - Front Passenger's Air Mix Control Motor Connector View
