Crankshaft Main Bearing

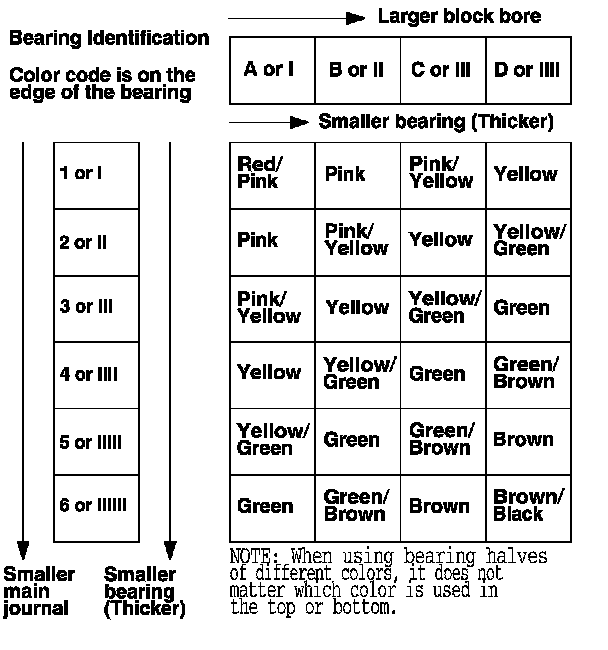

Crankshaft bearing Specifications

Crankshaft bearing

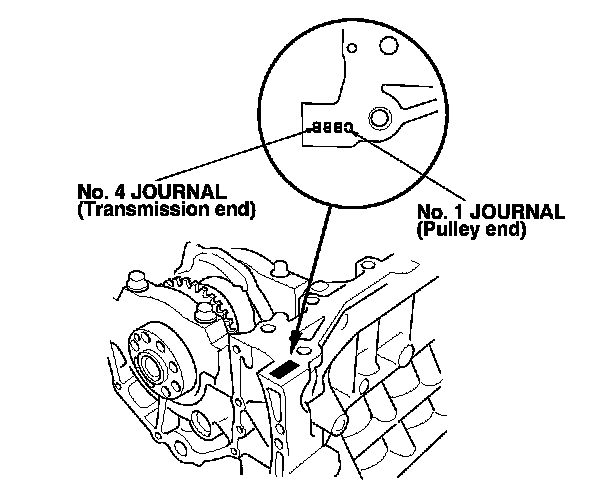

Crankshaft Bore Code Location

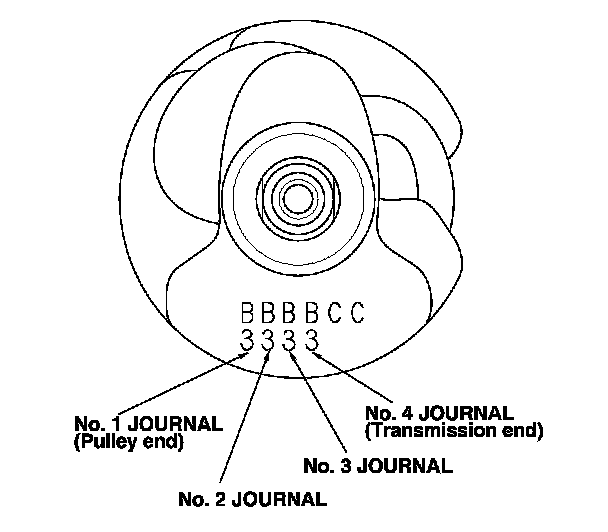

Main Journal Code Locations (Numbers or Bars)

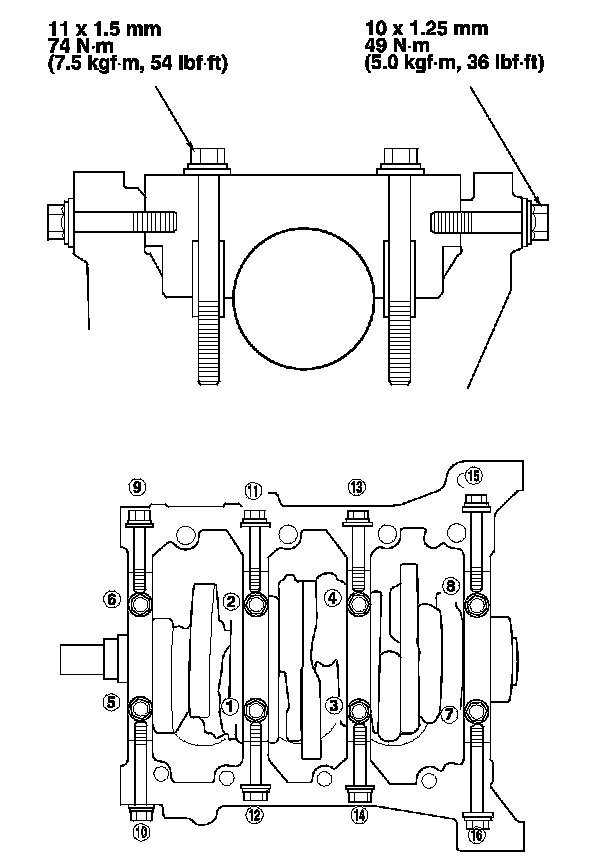

Bearing cap bolts 74 Nm (7.5 kgf-m, 54 ft lb)
Side bolts 49 Nm (5.0 kgf-m, 36 ft lb)





Repeat the torque sequence again to ensure the bolts are properly torqued
