Harmonic Balancer - Crankshaft Pulley: Service and Repair

Crankshaft Pulley Removal and Installation

Special Tools Required

- Holder Handle 07JAB-001020B
- Holder Attachment, 50 mm, Offset 07MAB-PY3010A
- Socket, 19 mm 07JAA-001020A or equivalent

Removal

1. Raise the vehicle on the lift.

2. Remove the right front wheel.

3. Remove the splash shield Splash Shield Replacement.

4. Remove the drive belt Service and Repair.

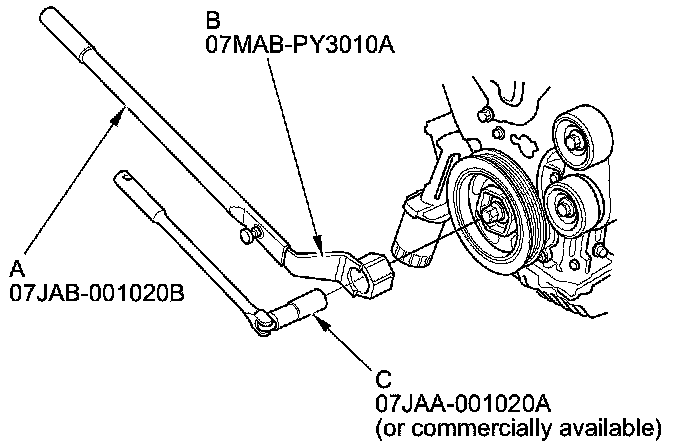

5. Hold the pulley with the handle, 6-25-660L (A) and the holder attachment, 50 mm, offset (B).





6. Remove the bolt with a heavy duty 19 mm socket (C) and a breaker bar, then remove the crankshaft pulley.

Installation

1. Remove any oil and clean the pulleys (A), the crankshaft (B), the bolt (C), and the washer (D). Lubricate with new engine oil as shown.






2. Install the crankshaft pulley, and tighten the bolt. Do not use an impact wrench.

1. Hold the pulley with the handle (A) and the holder attachment (B). Torque the bolt to 65 Nm (6.5 kg-m, 47 lb-ft) with a torque wrench and a 19 mm socket (C).

2. Mark the bolt head (D) and the crankshaft pulley (E) as shown, then tighten the bolt an additional 60 ° (The mark on the bolt head lines up with the mark on the crankshaft pulley).









3. Install the drive belt Service and Repair.

4. Install the splash shield Splash Shield Replacement.

5. Install the right front wheel.
