Front Defogger Vent Trim Removal/Installation

Front Defogger Vent Trim Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

- Take care not to scratch the dashboard or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the sunlight sensor Service and Repair.

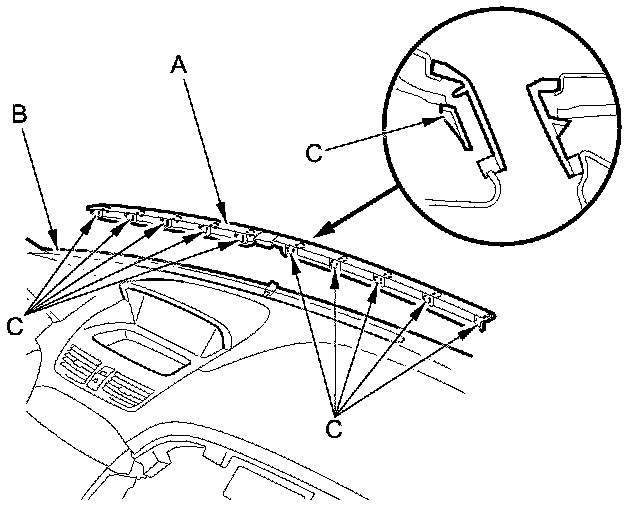

2. Insert the trim tool into a gap between the front defogger vent trim (A) and the dashboard (B), and release all of the hooks (C).





3. Install the front defogger vent trim in the reverse order of removal, and push the hooks into place securely.
